Module, Glow Plug, 3.0L Diesel [EXF]: Installation: Installation
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

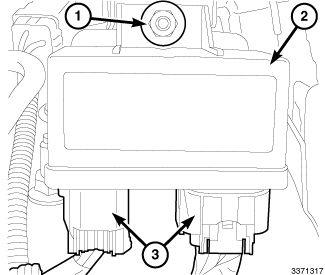

- Connect the Glow Plug Module harness connector (3).
- Install the glow plug module (2) and securely tighten the retaining nut (1).
- Install the cowl panel cover. Refer to COVER, COWL PANEL, INSTALLATION .
- Connect the negative battery cable.
