Module, Body Control: Installation: Installation: Procedure

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Body Control Module (BCM), Receptacles & Fasteners
GC0144625Courtesy of CHRYSLER GROUP, LLC
  1. Position the BCM in the vehicle.
  2. Install the fasteners (4), two at the bottom, and one at the top, and tighten the securely.
  3. Connect the electrical connectors to the Body Control Module (BCM) (1) receptacles (2 and 3) as needed.

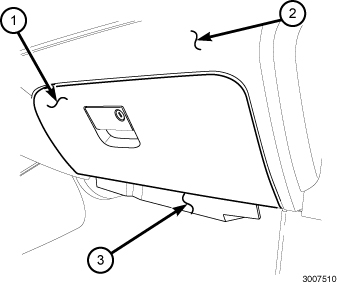

    Fig 2: Glove Box Assembly & Push Panel
    GC0144626Courtesy of CHRYSLER GROUP, LLC
  4. Install the glove box assembly (1). Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
  5. Install the lower hush panel (3) and install the two push-pin type retainers.
  6. Connect the negative battery cable.
NOTE:

Program the BCM in accordance with the module replacement and programming guide. Refer to STANDARD PROCEDURE .
