Section 739 (Navigation/Telecommunication (Service Information)): Microphone: Description

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

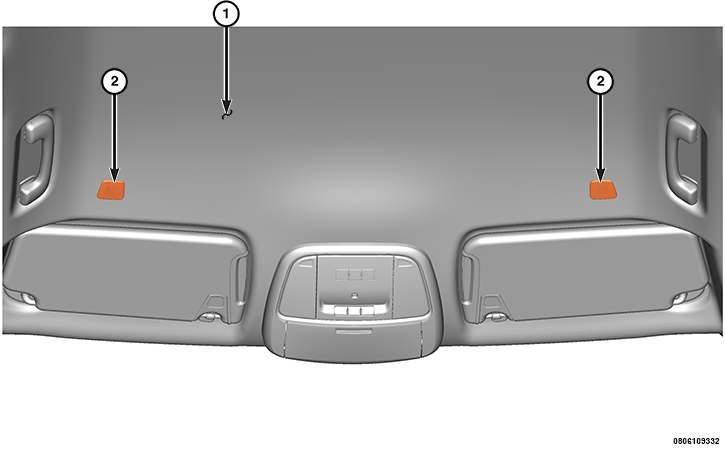

Vehicles equipped with the optional hands-free system have two stereo microphones (2) mounted in the headliner (1) just above the driver and front passenger, one to each side of the headliner. The two microphones are individually powered by and provide hardwired inputs to the Radio Receiver Module (RRM) in the instrument panel whenever the Voice Recognition (VR) feature of the hands-free system is active. These two microphones are connected to the vehicle electrical system through a dedicated take out and connector of the overhead wire harness.

In vehicles equipped with the optional Uconnect® system using the SiriusXM® Guardian connected vehicle services, the inside rear view mirror system houses both a SOS push button and an Assist push button.

The microphones cannot be adjusted or repaired and, if damaged or ineffective, they must be replaced.
