Sensor, Park Assist: Installation: Rear
The park assist sensors and the sensor spacers (O-rings) are each available for separate service replacement. The sensor brackets are bonded to and integral to the back side of the rear bumper fascia.
- Engage the O-ring spacer around the circumference of the sensor membrane protrusion.NOTE:
Production and all service replacement O-ring spacers are tapered. The wide side (base) of the O-ring should be seated against the sensor housing and the narrow side should be oriented toward the outer surface of the sensor membrane and the rear bumper fascia.
- Align and insert the sensor into the sensor bracket behind the rear bumper fascia until the bracket latch features are fully engaged over the latch tabs of the sensor.NOTE:
Be certain that each sensor membrane is properly centered in the openings of the rear fascia and that the O-ring spacers are not pinched. Improper centering or pinched O-rings can be detrimental to proper park assist sensor operation. Be certain that the sensor membrane is flush with the outer surface of the fascia.

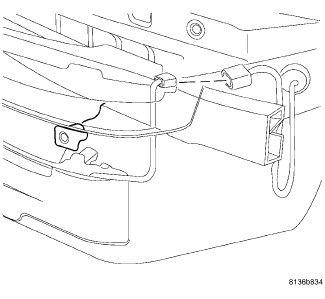

- From the back of the rear bumper fascia, connect the wire harness connector to the sensor.
- Install the rear bumper fascia onto the rear of the vehicle. Refer to FASCIA, REAR, INSTALLATION .
- Connect the negative cable to the battery. If equipped with an Intelligent Battery Sensor (IBS), reconnect the IBS connector.
