Belly Pan: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Base model shown in illustration, SRT models similar.

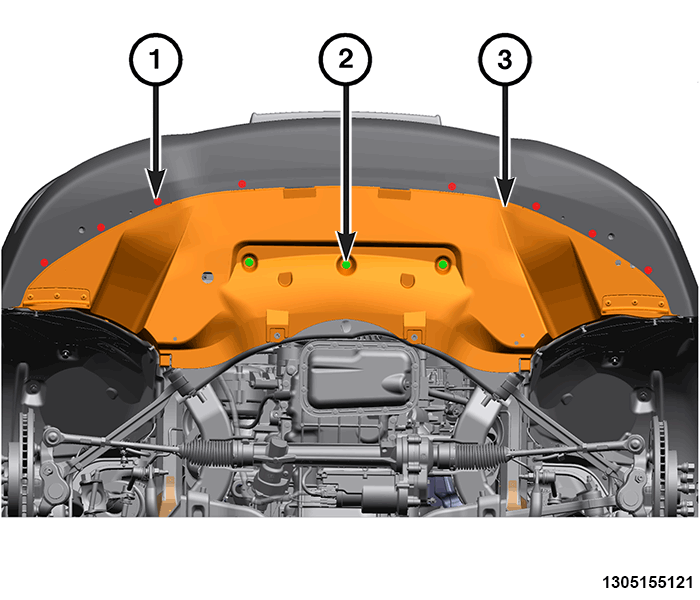

- Position the front belly pan (2) to the underside of the vehicle.
- Install the three push pin fasteners (2) that secure the front belly pan (2) to the underside of the vehicle's lower crossmember.
- Install the eight screws (1) that secure the front belly pan (2) to the underside of the vehicle's front fascia.

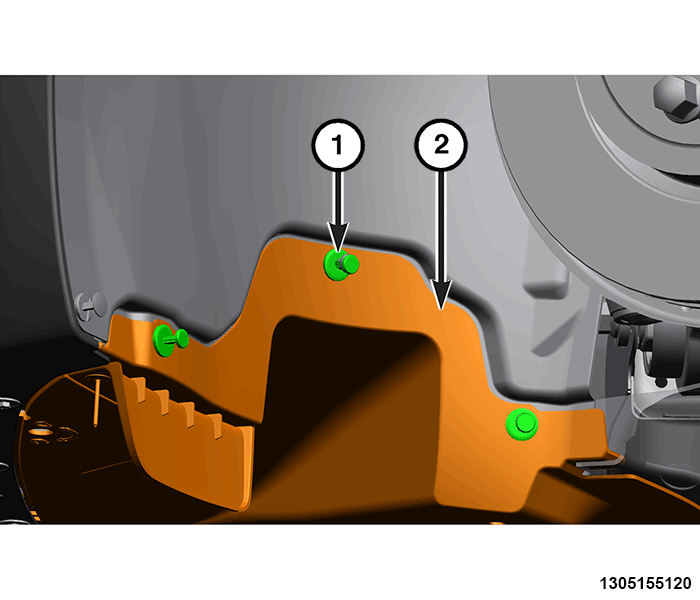

- Install the three fasteners (1) that secure the front belly pan (2) to the underside of the vehicle's wheelhouse inner. Repeat for the other side.NOTE:
During installation, ensure rear belly pan is shingled underneath front belly pan. Failure to do so may result in damage to belly pan.

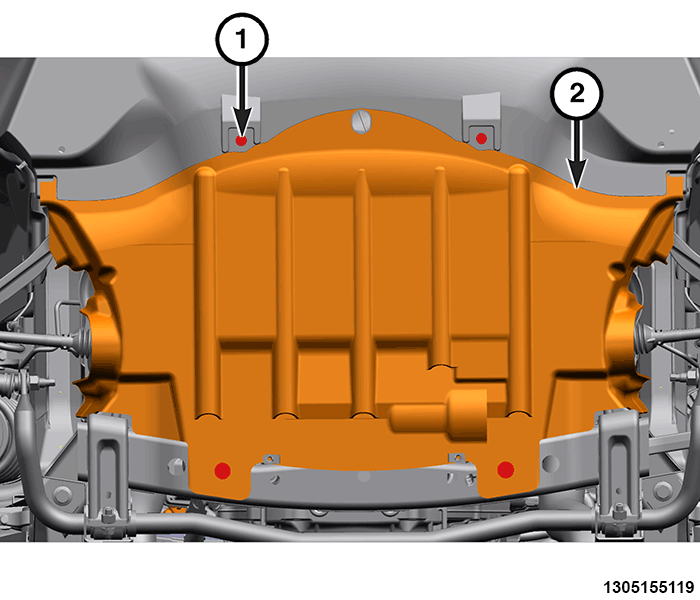

- Position the rear belly pan (2) to the underside of the vehicle and to the front belly pan.
- Install the fasteners (1) that secure the rear belly pan (2) to the underside of the vehicle. Tighten the fasteners securely.
- Lower the vehicle.
