Sensor, Dynamics: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

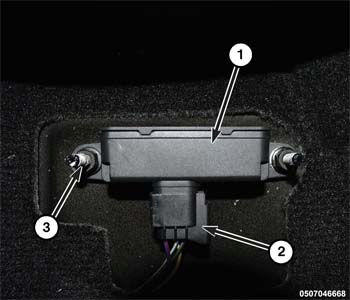

GC0162409Courtesy of CHRYSLER GROUP, LLC
  1. Install dynamics sensor (1). Tighten the dynamic sensor nuts (3) to the proper specification. Refer to TORQUE SPECIFICATION  .
  2. Connect the dynamic sensor wiring harness connector (2).
  3. Install floor console. Refer to CONSOLE, FLOOR, INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  5. Perform Verification Test and clear any faults.
