No Response From Abs (Anti-Lock Brake System) Module: Notes
WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.

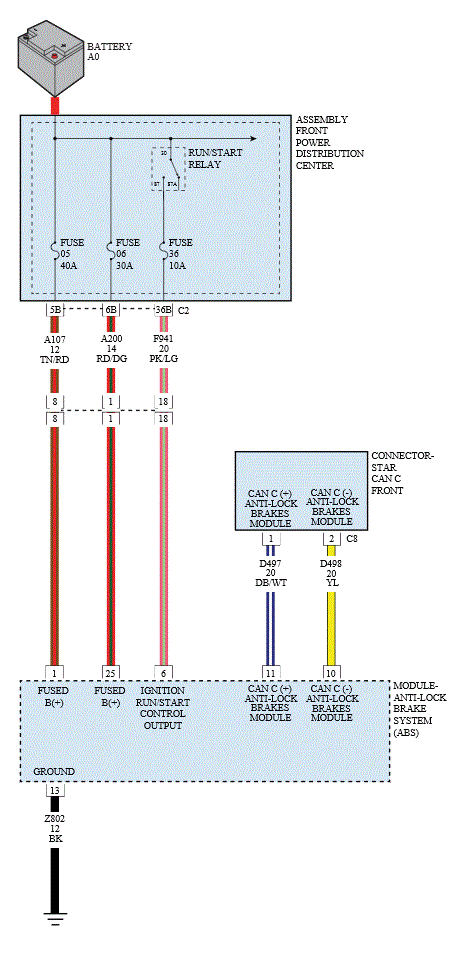

Fig 1: Anti-Lock Brake System Module Circuit Diagram
