Module, Keyless Ignition Node: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Instrument Panel Screw & Cluster Bezel
GC0145001Courtesy of CHRYSLER GROUP, LLC
NOTE:

Mid ICS shown in illustration, base similar.

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster bezel (2). Refer to BEZEL, INSTRUMENT CLUSTER, REMOVAL .
  3. Reach through the Integrated Center Stack (ICS) screen opening and disconnect the Keyless Ignition Node (KIN) electrical connector.

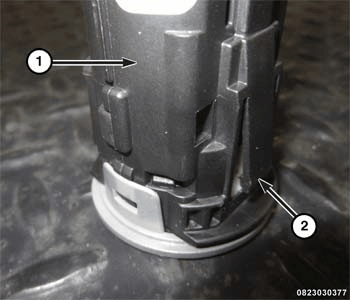

    Fig 2: Keyless Ignition Node & Tabs
    GC0162393Courtesy of CHRYSLER GROUP, LLC
  4. Press on the tabs (2) and push the KIN (1) out the front of the instrument panel.
