C15AF-1F-Low Side Driver - Circuit Intermittent: Notes

WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

If any other DTCs are present, repair them first before continuing with this diagnostic procedure.

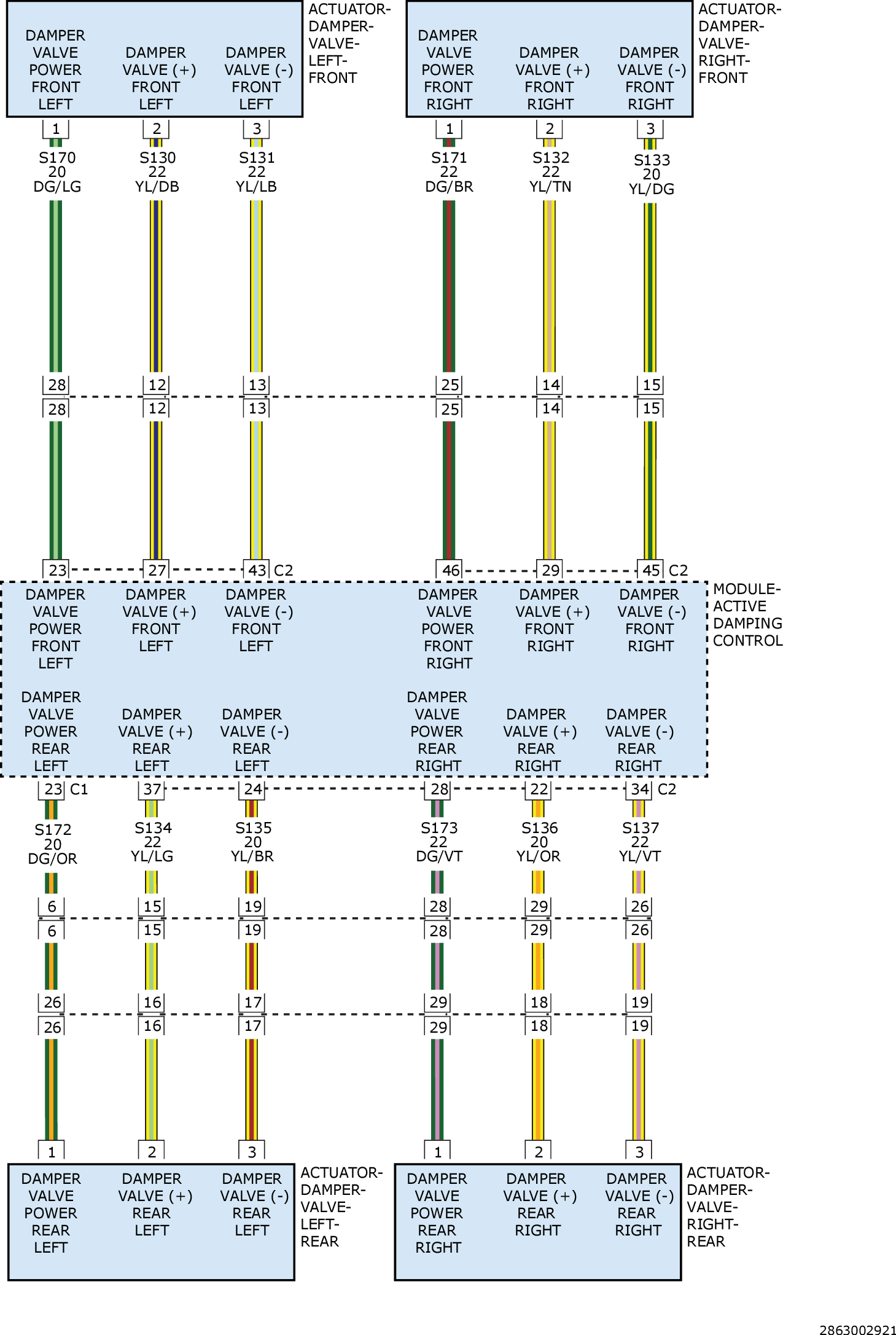

Fig 1: Valve Damper Actuator Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
