Relay, Starter: Removal: Removal
WARNING: This page is about a different car, the 2012 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

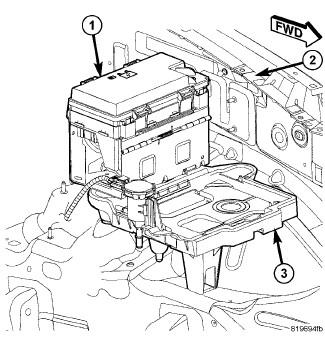

The fuel pump relay is located in the Power Distribution Center (PDC) (1). The PDC is located in the engine compartment near the left inner fender (2). Refer to the label on PDC cover for relay location.
- Remove PDC cover.
- Remove relay from PDC.
- Check condition of relay terminals and PDC connector terminals for damage or corrosion. Repair if necessary before installing relay.
- Check for pin height (pin height should be the same for all terminals within the PDC connector). Repair if necessary before installing relay.
