Center, Power Distribution (PDC): Description: Description

WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

The majority of electrical system fuses and relays are housed in the two Power Distribution Centers (PDC). One is located in the engine compartment, the Front Power Distribution Centers (PDC). The PDC is located next to the battery in the rear of the vehicle. Both of the PDC are replaced only as part of the body wiring harness.

For fuse description and layout. Refer to FUSE LOCATIONS AND TYPES, SPECIFICATIONS .

Fig 1: Identifying Rear PDC

Courtesy of CHRYSLER GROUP, LLC

Rear PDC located in the truck next to the battery.

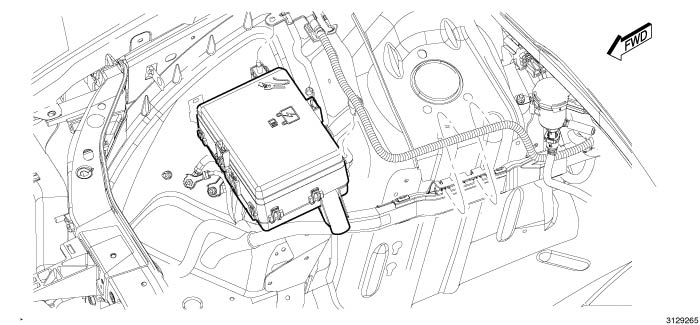

Fig 2: Identifying Front PDC

Courtesy of CHRYSLER GROUP, LLC

Front PDC located in the engine compartment on the passenger side fender.
