VALVE, Exhaust Gas Recirculation, 3.7L: Removal: Removal

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: EGR VALVE SOLENOID LOCATION

Courtesy of CHRYSLER LLC

The electronic EGR valve and solenoid assembly (1) is attached to the rear of the left cylinder head.

Use a diagnostic scan tool to record any DTC's (Diagnostic Trouble Codes).
Disconnect and isolate the negative battery cable.

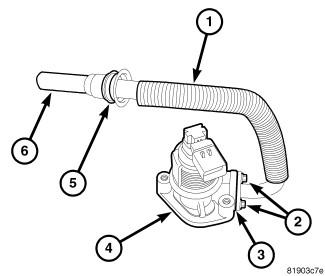

Fig 2: IDENTIFYING SOLENOID/TUBE ASSEMBLY
Courtesy of CHRYSLER LLC

An exhaust gas routing tube (1) connects the EGR valve (4) to the intake manifold.

Remove two tube mounting bolts (2).
Remove tube (1) from solenoid (4). Slip opposite end of tube (6) from intake manifold.
Remove gasket (3) located between EGR valve solenoid and tube flange.

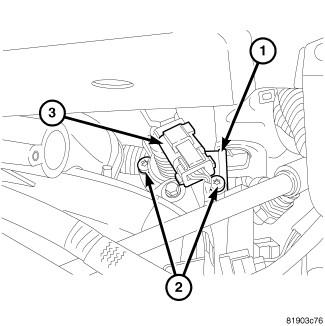

Fig 3: LOCATING VALVE SOLENOID
Courtesy of CHRYSLER LLC
Disconnect electrical connector (3) at solenoid (1).
Remove two EGR valve solenoid mounting bolts (2).
Remove solenoid (1) from engine.

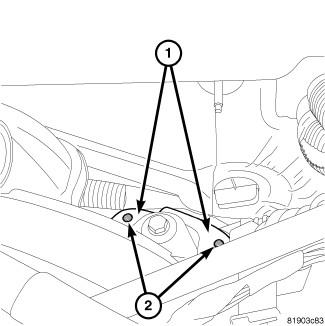

Fig 4: LOCATING VALVE SOLENOID GASKET
Courtesy of CHRYSLER LLC
Remove and discard gasket (1) located under EGR solenoid.
