Standard Procedure: Draining

WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radiator Petcock

Courtesy of CHRYSLER GROUP, LLC

WARNING:

Do not remove cylinder block drain plugs or loosen radiator draincock with system hot and under pressure. Serious burns from coolant can occur.

NOTE:

Typical drain plug shown in illustration.

DO NOT WASTE reusable coolant. If solution is clean, drain coolant into a clean container for reuse.

Remove radiator pressure cap.
Raise and secure vehicle.
If equipped, remove the underbody splash shield.
Loosen radiator petcock.
Drain coolant into a clean container.

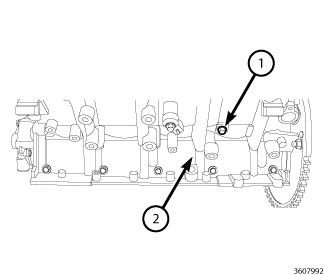

Fig 2: Drain Plug & Engine Block
Courtesy of CHRYSLER GROUP, LLC
If necessary, to perform a complete coolant drain of the engine, remove the drain plug (1) from the engine block (2).
