Diagnostic Test

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Using the scan tool, record and erase the D's.
3. Try to start the engine.
4. With the scan tool, read the Active DTCs and wait one minute.
  Does the scan tool display: B215B-14-IGNITION RUN/START 2 CONTROL - CIRCUIT SHORT TO GROUND OR OPEN as active?

  Yes
  - Go To 2.
  No
  - Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals and correct pin tension.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
(F20) IGNITION SWITCH OUTPUT CIRCUIT FOR AN OPEN

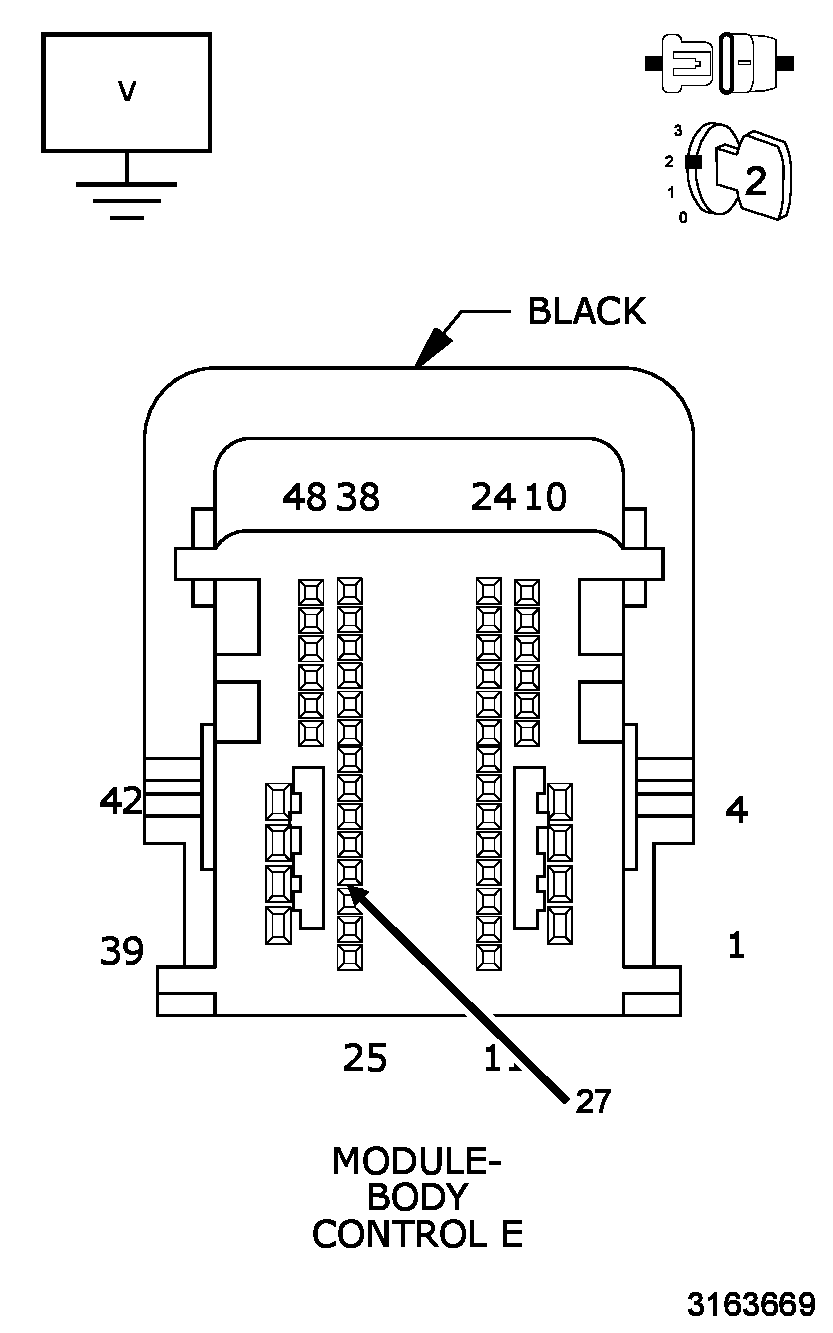

Fig 1: Checking Ignition Switch Output Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Body Control Module E harness connector.
3. Turn the ignition on.
4. Measure the voltage between ground and the (F20) Ignition Switch Output circuit in the Body Control Module E connector.
  Is the voltage above 11.5 Volts?

  Yes
  - Replace the Body Control Module in accordance with the Service Information. Refer to MODULE, BODY CONTROL, REMOVAL .
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 3.
(F20) IGNITION SWITCH OUTPUT CIRCUIT SHORT TO GROUND

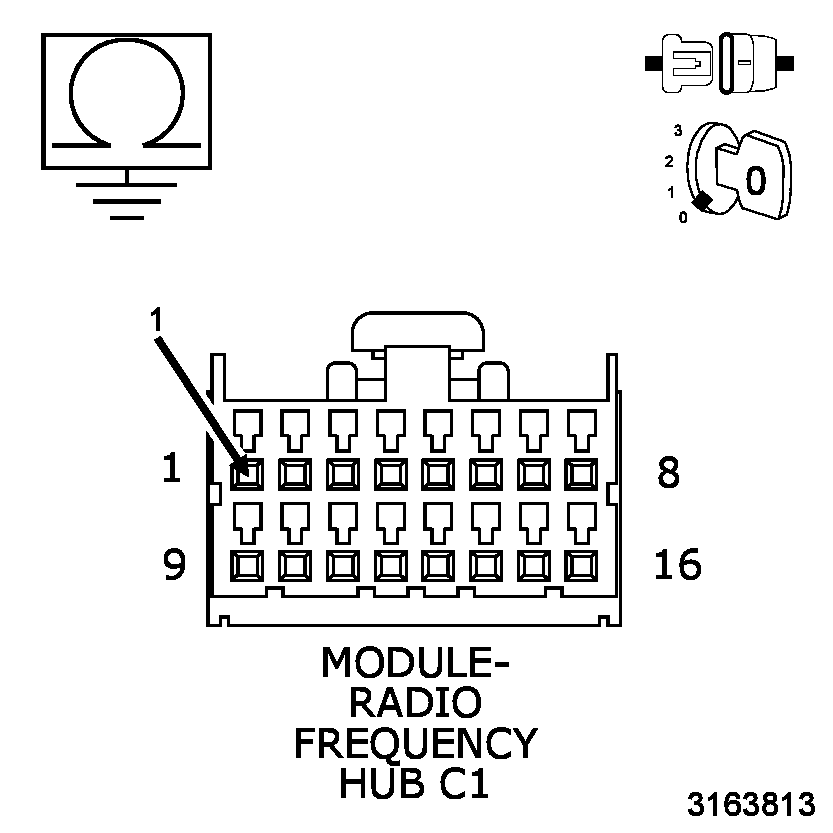

Fig 2: Checking Ignition Switch Output Circuit Short To Ground
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Radio Frequency Hub (RF Hub) C1 harness connector.
3. Measure the resistance between ground and the (F20) Ignition Switch Output circuit.
  Is the resistance below 30K Ohms?

  Yes
  - Repair the short to ground in the (F20) Ignition Switch Output circuit.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Go To 4.
(F20) IGNITION SWITCH OUTPUT CIRCUIT WIRE OPEN

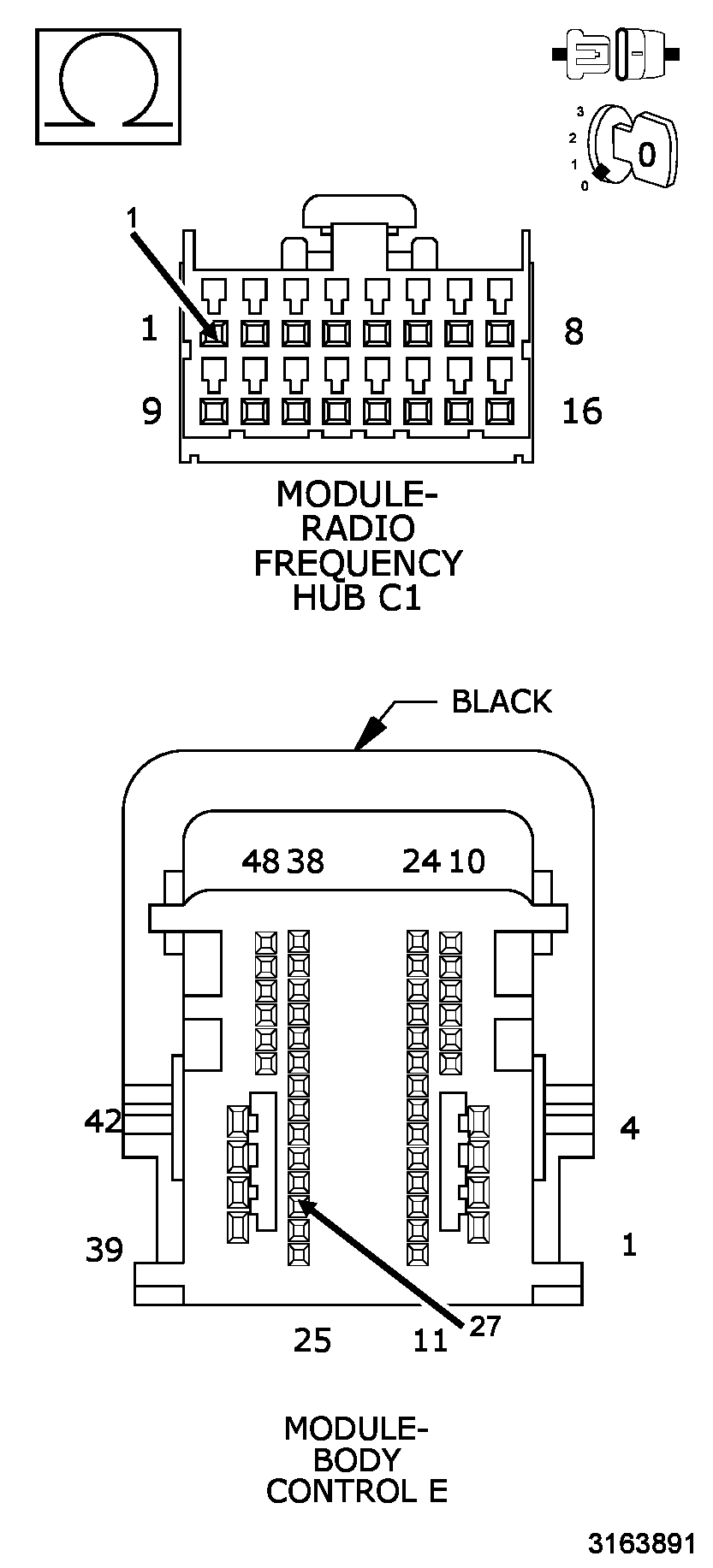

Fig 3: Checking Ignition Switch Output Circuit Wire For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Measure the resistance of the (F20) Ignition Switch Output wire between the Body Control Module E harness connector and the RF Hub C1 connector.
  Is the resistance below 2.0 Ohms?

  Yes
  - Replace the Radio Frequency Hub (RF Hub) Module in accordance with the Service Information. Refer to MODULE, RADIO FREQUENCY (RF HUB), REMOVAL .
  - Replace the Steering Wheel Lock Module in accordance with the Service Information. Refer to MODULE, SHAFT LOCK, REMOVAL .
  - Perform the RADIO FREQUENCY HUB (RF HUB) VERIFICATION TEST. Refer to RADIO FREQUENCY HUB (RF HUB) VERIFICATION TEST .
  No
  - Repair the open in the (F20) Ignition Switch Output wire.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
