Section 110 (Charging System (Service Information)): Generator: Installation: 3.0L

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

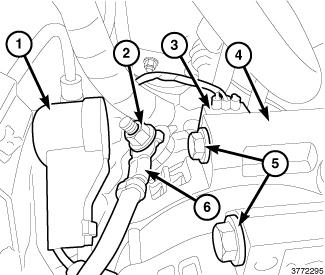

Fig 1: Field Generator Wire Harness Connector, Protective Cover, Two Upper Bolts, Generator & B+ Cable
GC0152311Courtesy of CHRYSLER GROUP, LLC
  1. Position the generator (4) to the engine and install the upper generator bolts (5). Tighten bolts (5) to 28 N.m (21 ft. lbs).
  2. Install the B+ cable (6) to the generator. Tighten nut (2) to 11 N.m (97 in. lbs.).
  3. Install the protective cover (1) from the B+ cable (6).
  4. Connect the field generator wire harness connector (3).

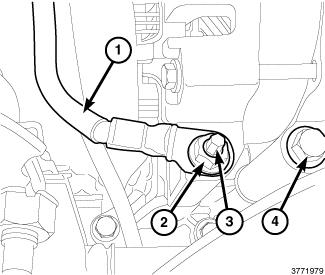

    Fig 2: Lower Generator Bolt, Nut, Ground Cable & Stud
    GC0152310Courtesy of CHRYSLER GROUP, LLC
  5. Install the lower generator stud (3) and tighten to 12 N.m (106 in. lbs.).
  6. Install the ground cable (1) to the generator. Tighten nut (2) to 28 N.m (21 ft. lbs).
  7. Install the lower generator bolt (4) and tighten to 28 N.m (21 ft. lbs).
  8. Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

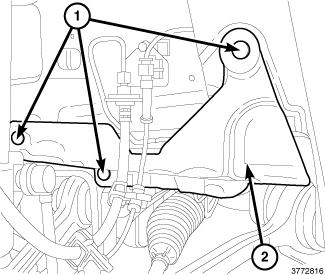

    Fig 3: Three Push Pins & Lower Splash Shield
    GC0152313Courtesy of CHRYSLER GROUP, LLC
  9. Position the lower splash shield (2) and install the three push pins (1).
  10. Install the right front wheel and tire assembly. Refer to INSTALLATION .
    Fig 4: Engine Cover
    GC0152109Courtesy of CHRYSLER GROUP, LLC
  11. Install the engine cover (1).
  12. Connect the negative battery cable.
