Diagnostic Test

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR RELATED DIAGNOSTIC TROUBLE CODES
    1. Turn the ignition on.
    2. With the scan tool, read DTCs.

      Does the scan tool display any tile/telescope position sensor DTCs?

      Yes

      No

      • Go To  2.
  2. TEST FOR INTERMITTENT CONDITION
    1. Turn the ignition on.
    2. With the scan tool, record and erase DTCs.
    3. Move the Telescope Switch in the forward/rearward position three times.
    4. With the scan tool, read the active DTCs.

      Does the scan tool display B1D93-00-STEERING COLUMN TELESCOPE MOTOR CONTROL CIRCUIT PERFORMANCE?

      Yes

      • Go To  3.

      No

      • Test complete, the condition or conditions that originally set this DTC are not present at this time. Using the wiring diagrams as a guide, check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  3. CHECKING THE (P152) TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE CIRCUIT

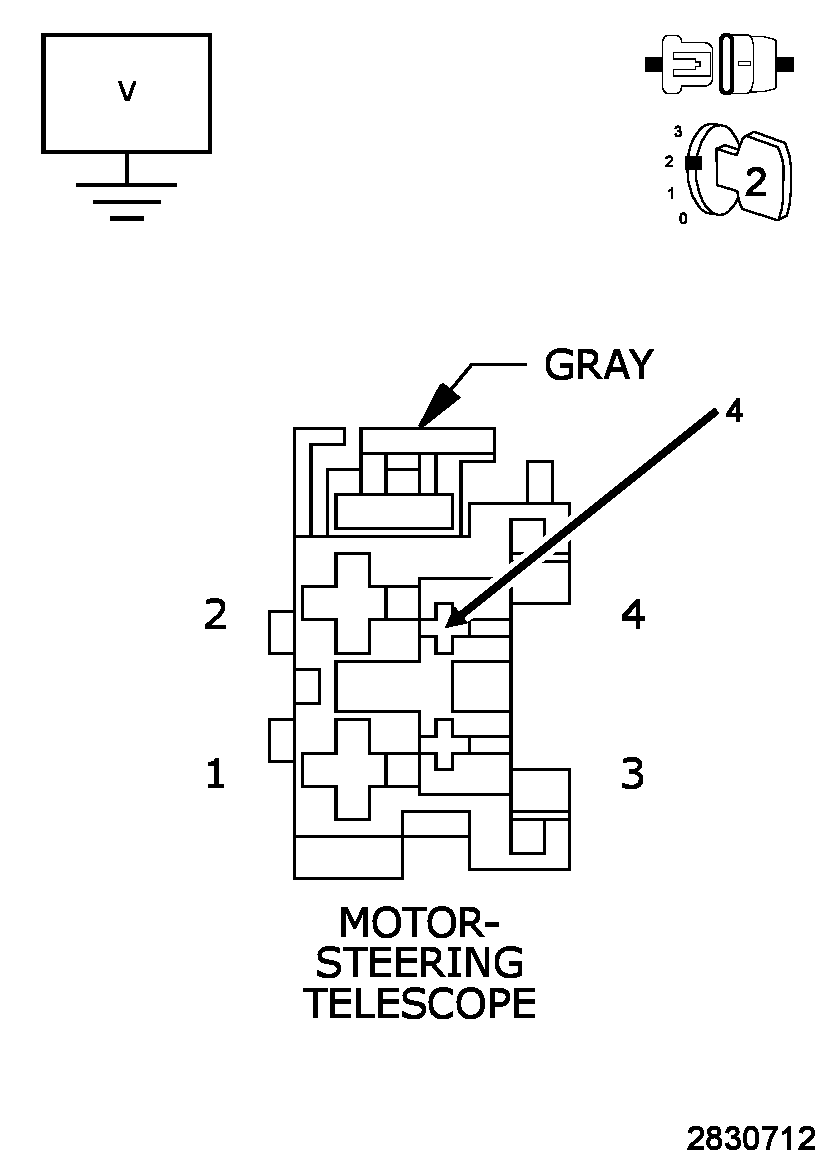

    Fig 1: Measuring Voltage Between Telescope Steering Forward/Rearward Position Sense Circuit & Ground
    GC0151236Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the Steering Column Telescope Motor harness connector.
    2. Measure the voltage between the (P152) Telescope Steering Forward/Rearward Position Sense circuit and ground.

      Is the voltage above 11 volts?

      Yes

      • Go To  4.

      No

      • Go To  11.
  4. CHECKING THE (G914) SENSOR GROUND CIRCUIT

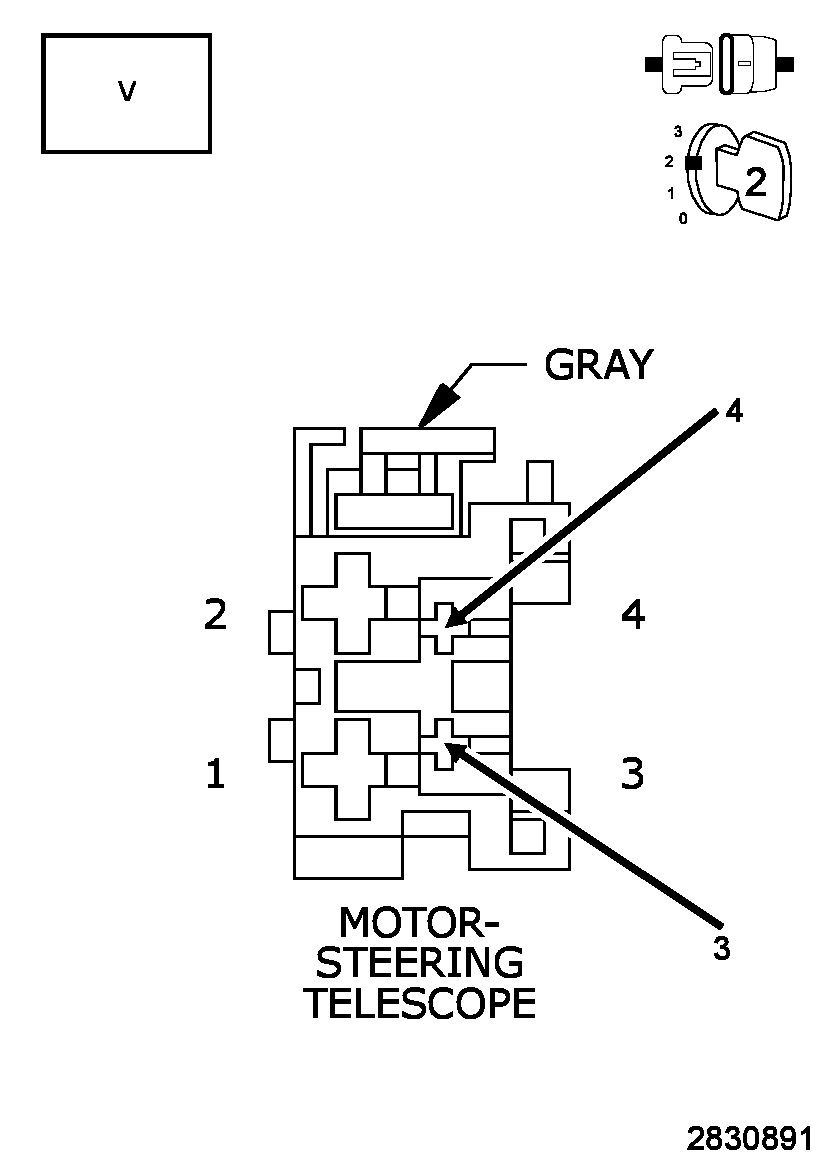

    Fig 2: Checking Sensor Ground Circuit
    GC0151241Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (P152) Telescope Steering Forward/Rearward Position Sense circuit and the (G914) Sensor Ground circuit.

      Is the voltage above 11 volts?

      Yes

      • Go To  5.

      No

      • Go To  12.
  5. CHECKING THE (P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT

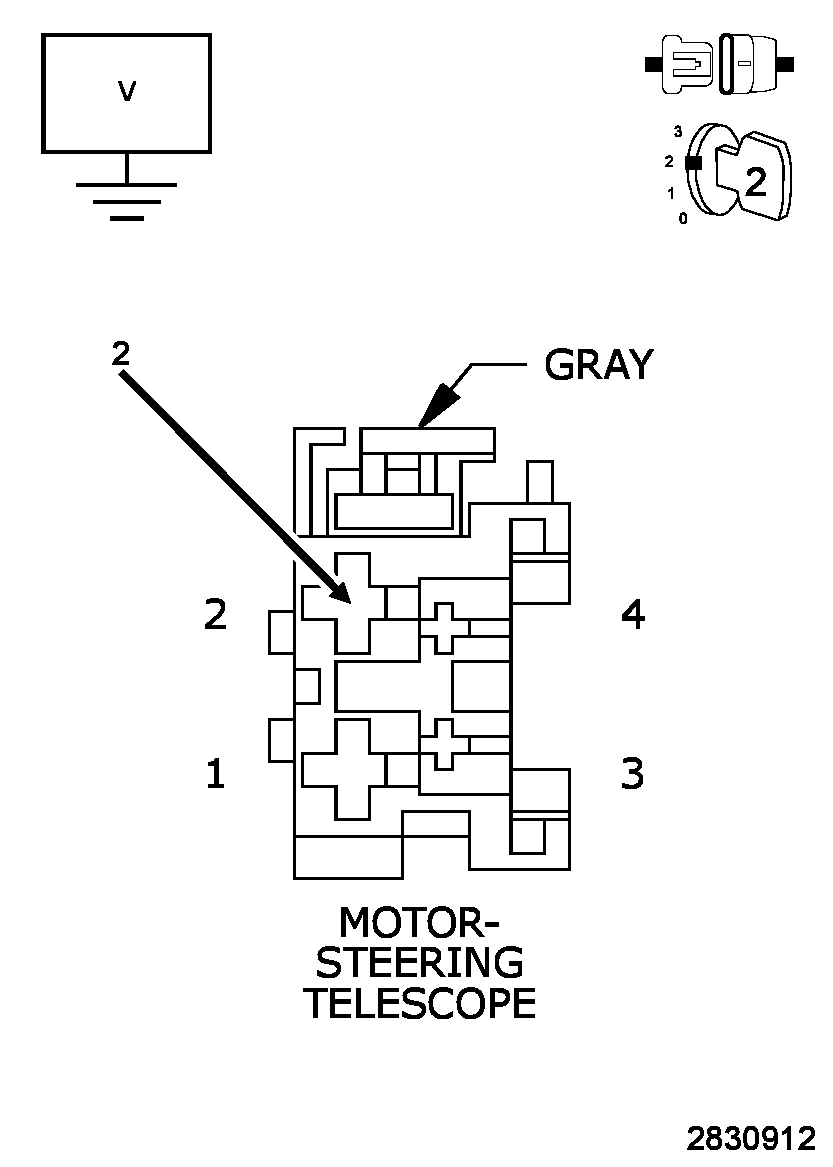

    Fig 3: Checking Telescope Steering Motor Forward/Rearward Driver Circuit
    GC0151242Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (P157) Telescope Steering Motor Forward/Rearward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Go To  13.

      No

      • Go To  6.
  6. CHECKING THE (P953) STEERING MOTOR COMMON CIRCUIT

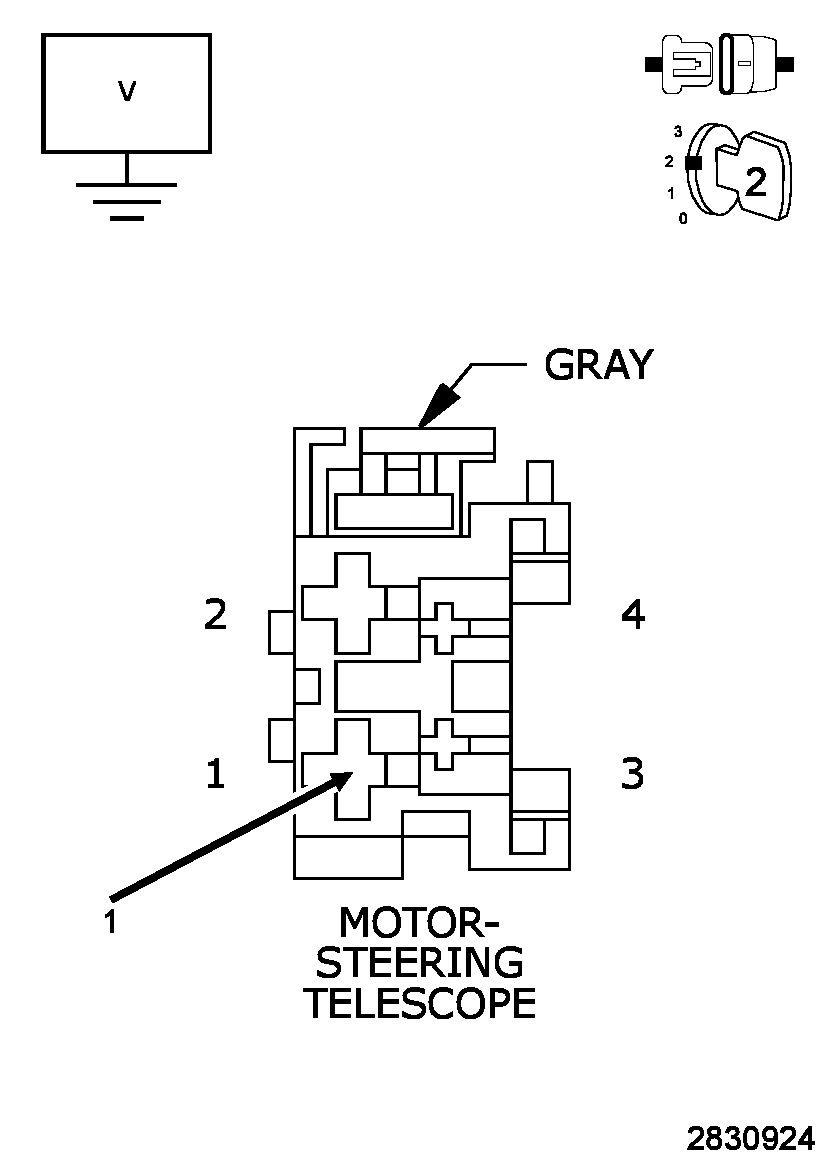

    Fig 4: Measuring Voltage Between Steering Motor Common Circuit & Ground
    GC0151243Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage between the (P953) Steering Motor Common circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Go To  14.

      No

      • Go To  7.
  7. CHECKING THE (P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT

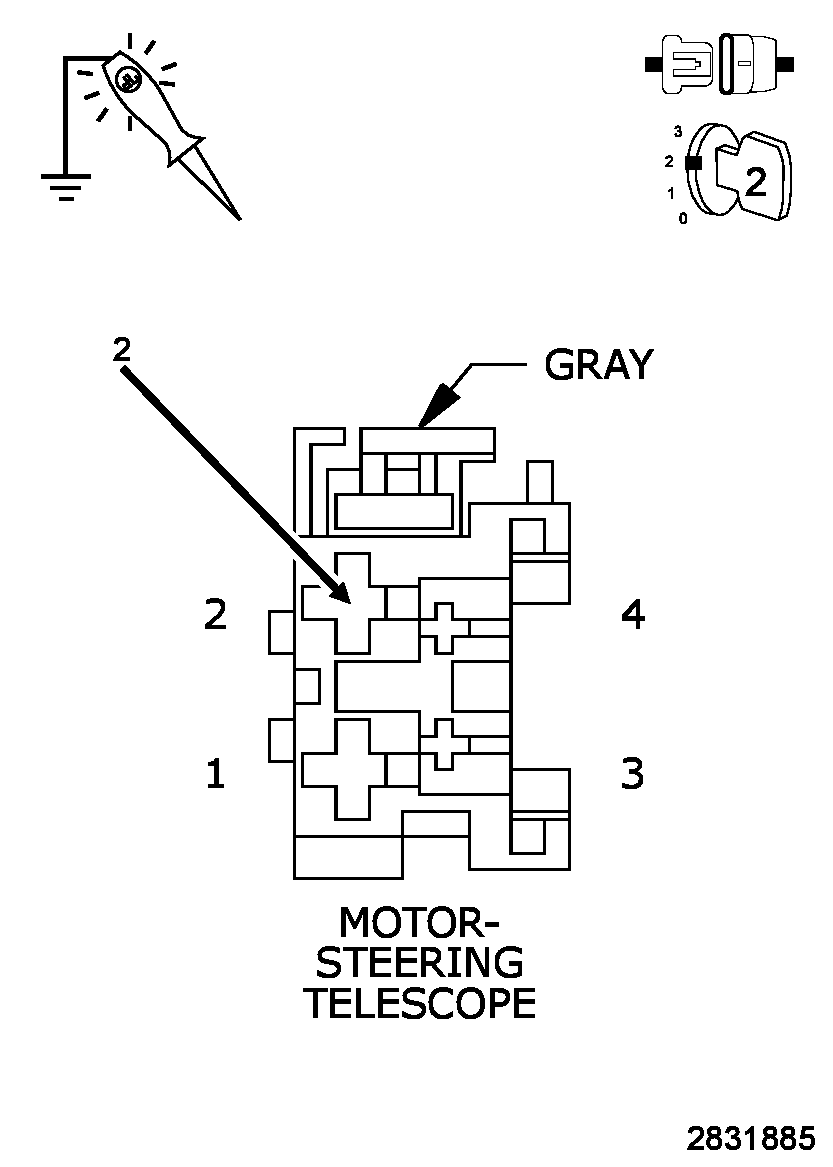

    Fig 5: Checking Telescope Steering Motor Forward/Rearward Driver Circuit
    GC0151272Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P157) Telescope Steering Motor Forward/Rearward Driver circuit and ground.
    2. While observing the test light, move the Telescope Switch in the forward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  8.

      No

      • Go To  15.
  8. CHECKING THE (P953) STEERING MOTOR COMMON CIRCUIT
    Fig 6: Checking Steering Motor Common Circuit
    GC0151273Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P953) Steering Motor Common circuit and ground.
    2. While observing the test light, move the Telescope Switch in the rearward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  9.

      No

      • Go To  17.
  9. CHECKING THE TELESCOPE REARWARD DRIVER

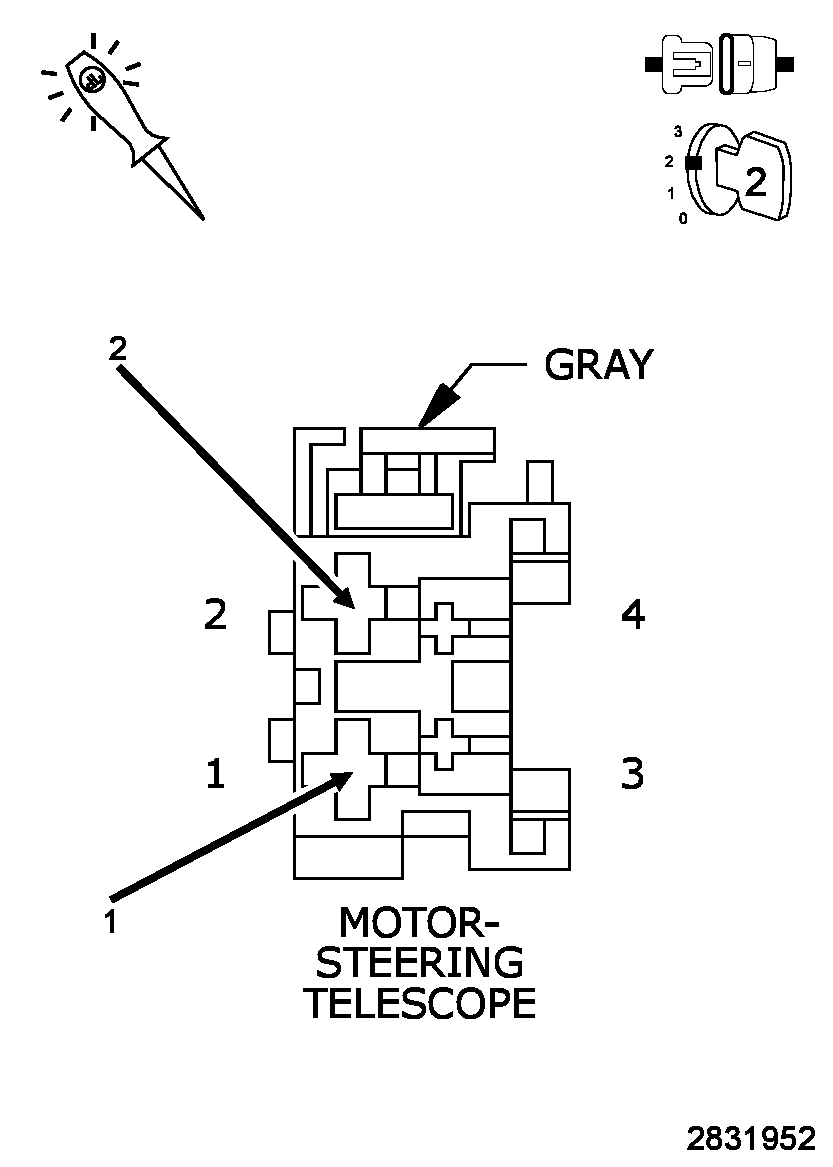

    Fig 7: Checking Telescope Driver
    GC0151276Courtesy of CHRYSLER GROUP, LLC
    1. Connect a 12-volt test light between the (P157) Telescope Steering Motor Forward/Rearward Driver circuit and the (P953) Steering Motor Common circuit.
    2. While observing the test light, move the Telescope Switch in the forward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Go To  10.

      No

      • Go To  19.
  10. CHECKING THE TELESCOPE FORWARD DRIVER
    Fig 8: Checking Telescope Driver
    GC0151276Courtesy of CHRYSLER GROUP, LLC
    1. While observing the test light, move the Telescope Switch in the rearward position.
      NOTE:

      The test lamp must illuminate brightly. Compare the brightness to that of a direct connection to the battery.

      Does the test lamp illuminate brightly?

      Yes

      • Replace the Steering Column Telescope Motor Assembly in accordance with the Service Information. Refer to COLUMN, REMOVAL .
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  11. CHECKING THE (P152) TELESCOPE STEERING FORWARD/REARWARD POSITION SENSE CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

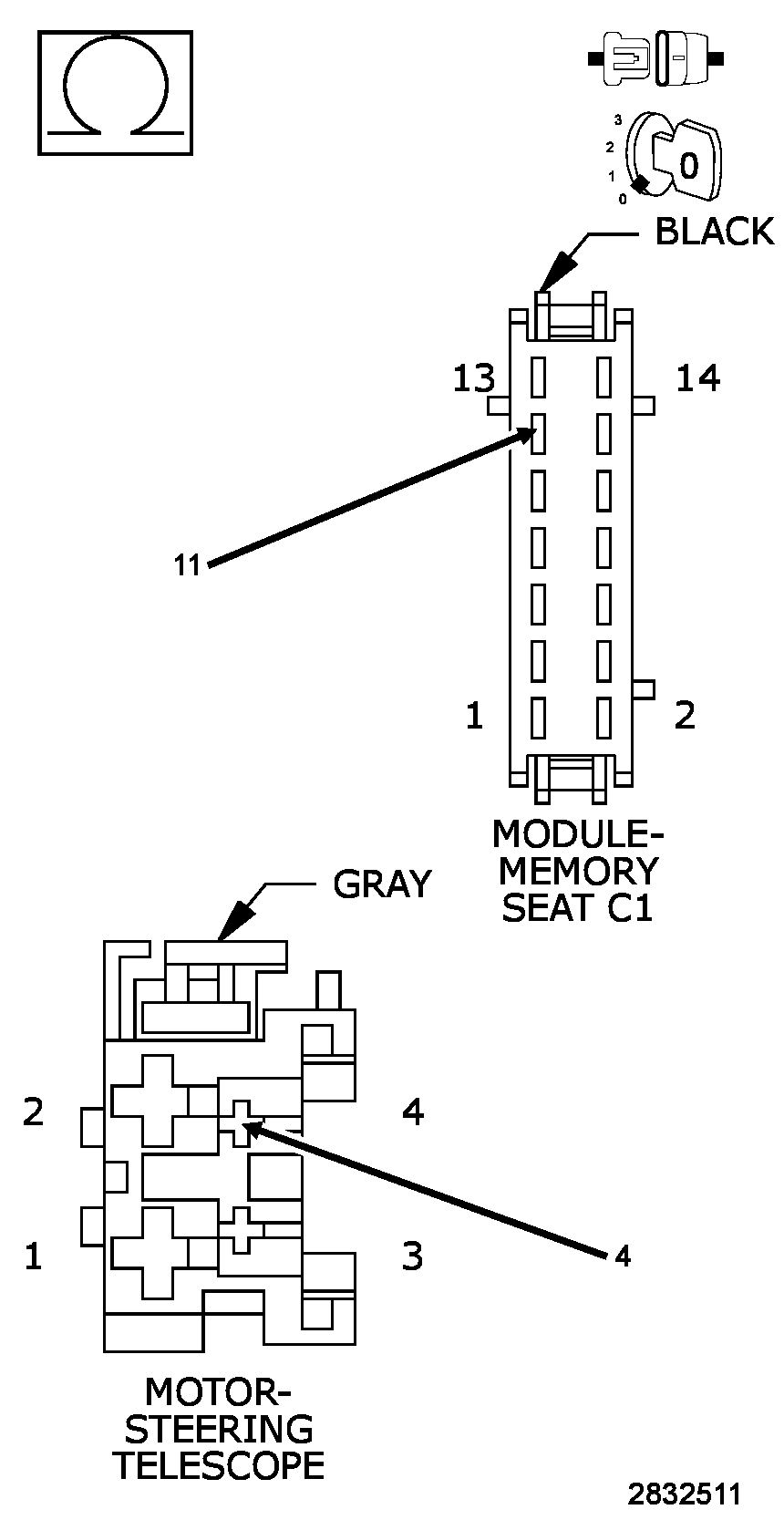

    Fig 9: Checking Telescope Steering Forward/Rearward Position Sense Circuit For An Open Or Excessive Resistance
    GC0151279Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C1 harness connector.
    3. Measure the resistance of the (P152) Telescope Steering Forward/Rearward Position Sense circuit between the Steering Column Telescope Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms.

      Yes

      • Repair the open or excessive resistance in the (P152) Telescope Steering Forward/Rearward Position Sense circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  12. CHECKING THE (G914) SENSOR GROUND CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

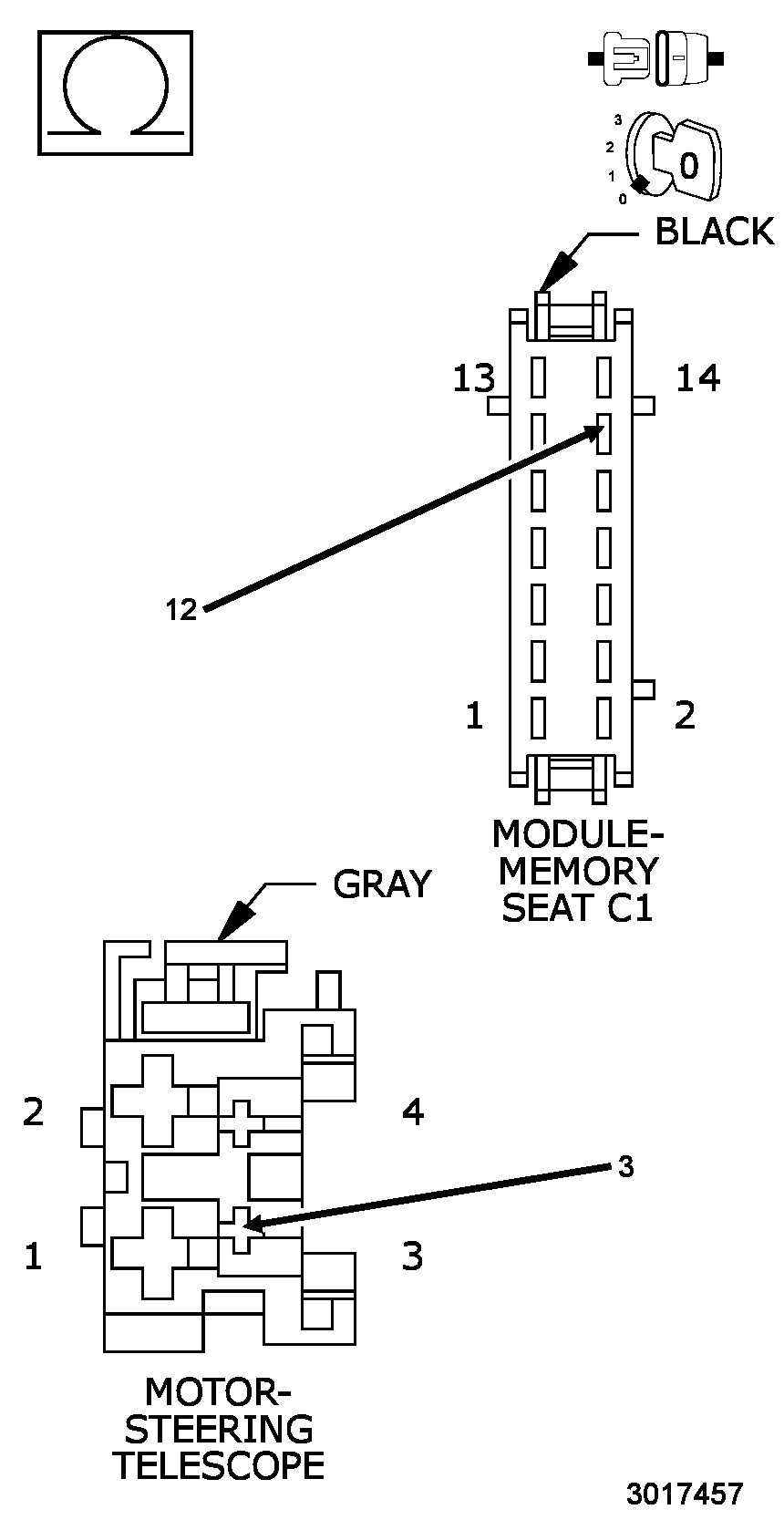

    Fig 10: Checking Sensor Ground Circuit For An Open Or Excessive Resistance
    GC0149663Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C1 harness connector.
    3. Measure the resistance of the (G914) Sensor Ground circuit between the Steering Column Telescope Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms.

      Yes

      • Repair the open or excessive resistance in the (G914) Sensor Ground circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  13. CHECKING THE (P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 11: Checking Telescope Steering Motor Forward/Rearward Driver Circuit
    GC0151242Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the MSMD C1 harness connector.
    2. Measure the voltage between the (P157) Telescope Steering Motor Forward/Rearward Driver circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Repair the short to voltage in the (P157) Telescope Steering Motor Forward/Rearward Driver circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  14. CHECKING THE (P953) STEERING MOTOR COMMON CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 12: Measuring Voltage Between Steering Motor Common Circuit & Ground
    GC0151243Courtesy of CHRYSLER GROUP, LLC
    1. Disconnect the MSMD C1 harness connector.
    2. Measure the voltage between the (P953) Steering Motor Common circuit and ground.

      Is the voltage above 1 volt?

      Yes

      • Repair the short to voltage in the (P953) Steering Motor Common circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  15. CHECKING THE (P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT FOR A SHORT TO GROUND

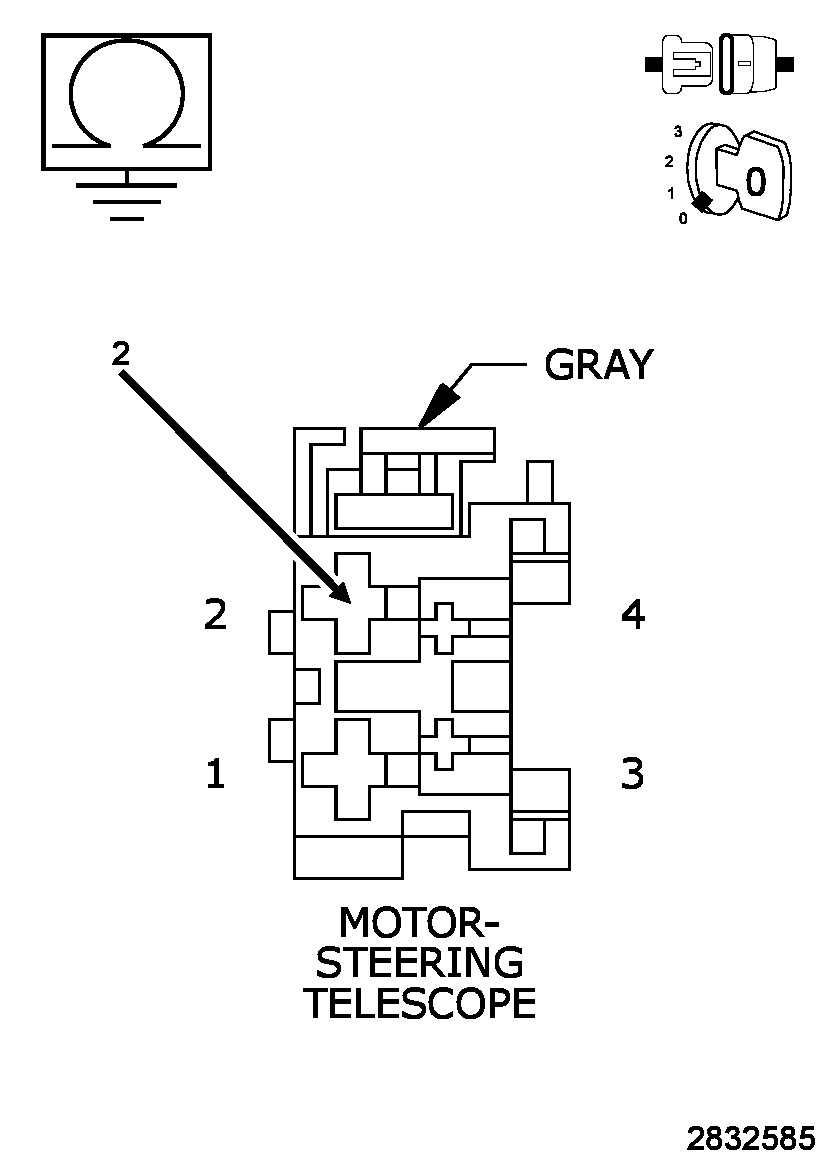

    Fig 13: Checking Telescope Steering Motor Forward/Rearward Driver Circuit For A Short To Ground
    GC0151280Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C1 harness connector.
    3. Measure the resistance between ground and the (P157) Telescope Steering Motor Forward/Rearward Driver circuit.

      Is the resistance below 1K Ohms.

      Yes

      • Repair the short to ground in the (P157) Telescope Steering Motor Forward/Rearward Driver circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  16.
  16. CHECKING THE (P157) TELESCOPE STEERING MOTOR FORWARD/REARWARD DRIVER CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

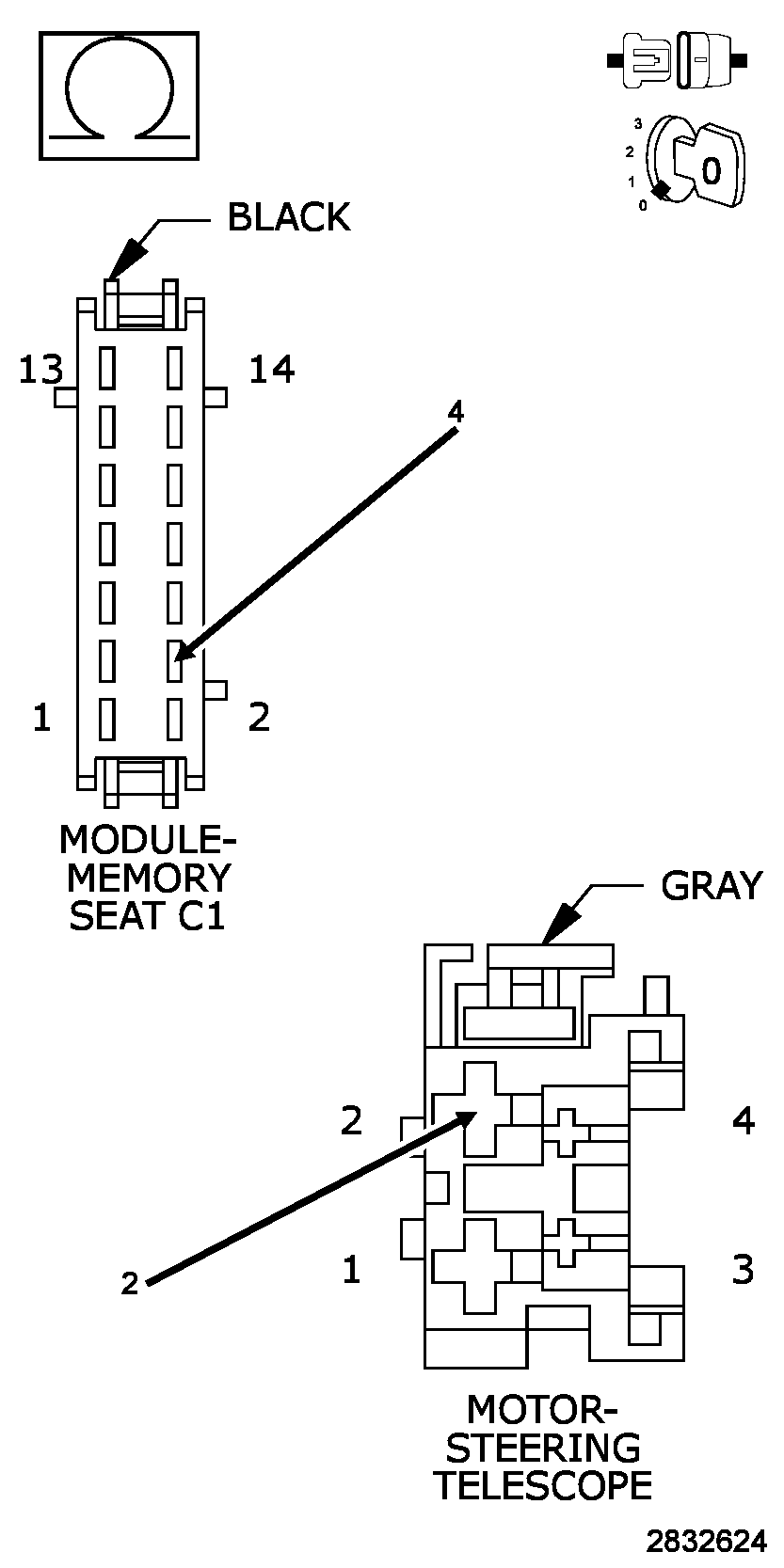

    Fig 14: Checking Telescope Steering Motor Forward/Rearward Driver Circuit For An Open Or Excessive Resistance
    GC0151282Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (P157) Telescope Steering Motor Forward/Rearward Driver circuit between the Steering Column Telescope Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms.

      Yes

      • Repair the open or excessive resistance in the (P157) Telescope Steering Motor Forward/Rearward Driver circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  17. CHECKING THE (P953) STEERING MOTOR COMMON CIRCUIT FOR A SHORT TO GROUND

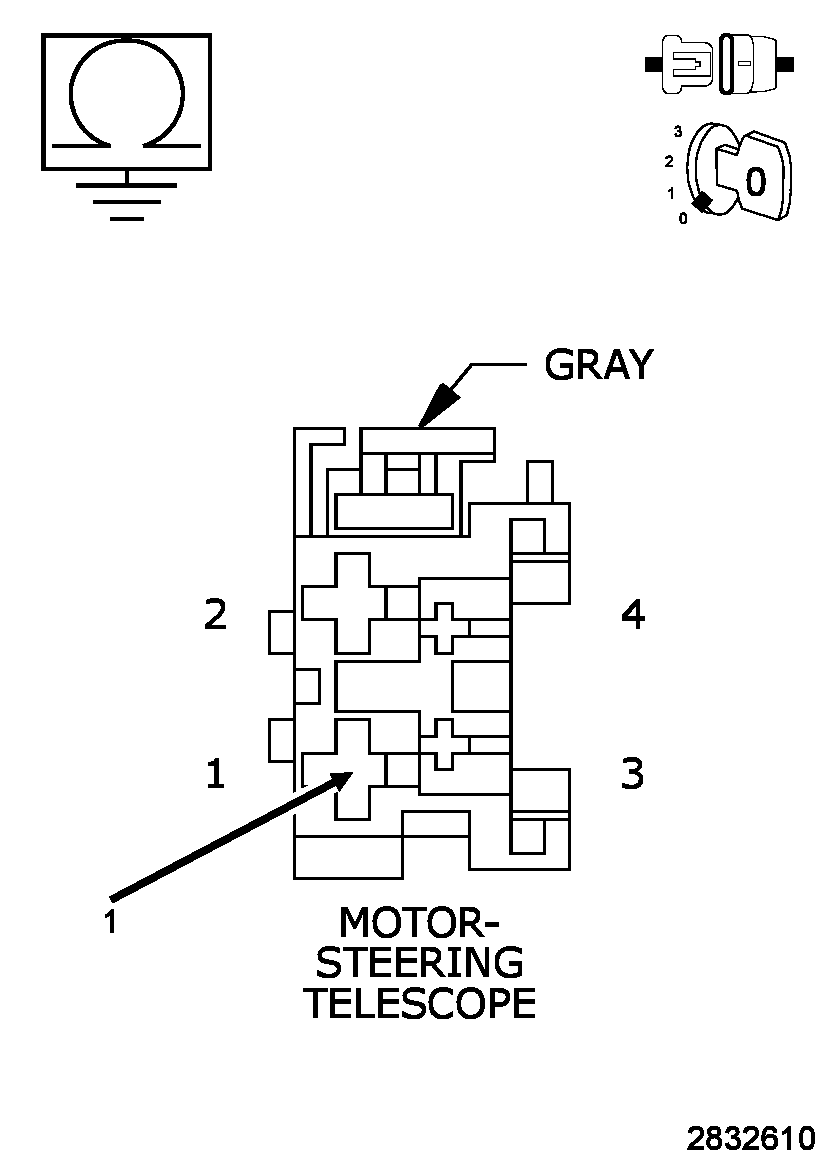

    Fig 15: Checking Steering Motor Common Circuit For A Short To Ground
    GC0151281Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the MSMD C1 harness connector.
    3. Measure the resistance between ground and the (P953) Steering Motor Common circuit.

      Is the resistance below 1K Ohms.

      Yes

      • Repair the short to ground in the (P953) Steering Motor Common circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  18.
  18. CHECKING THE (P953) STEERING MOTOR COMMON CIRCUIT FOR AN OPEN OR EXCESSIVE RESISTANCE

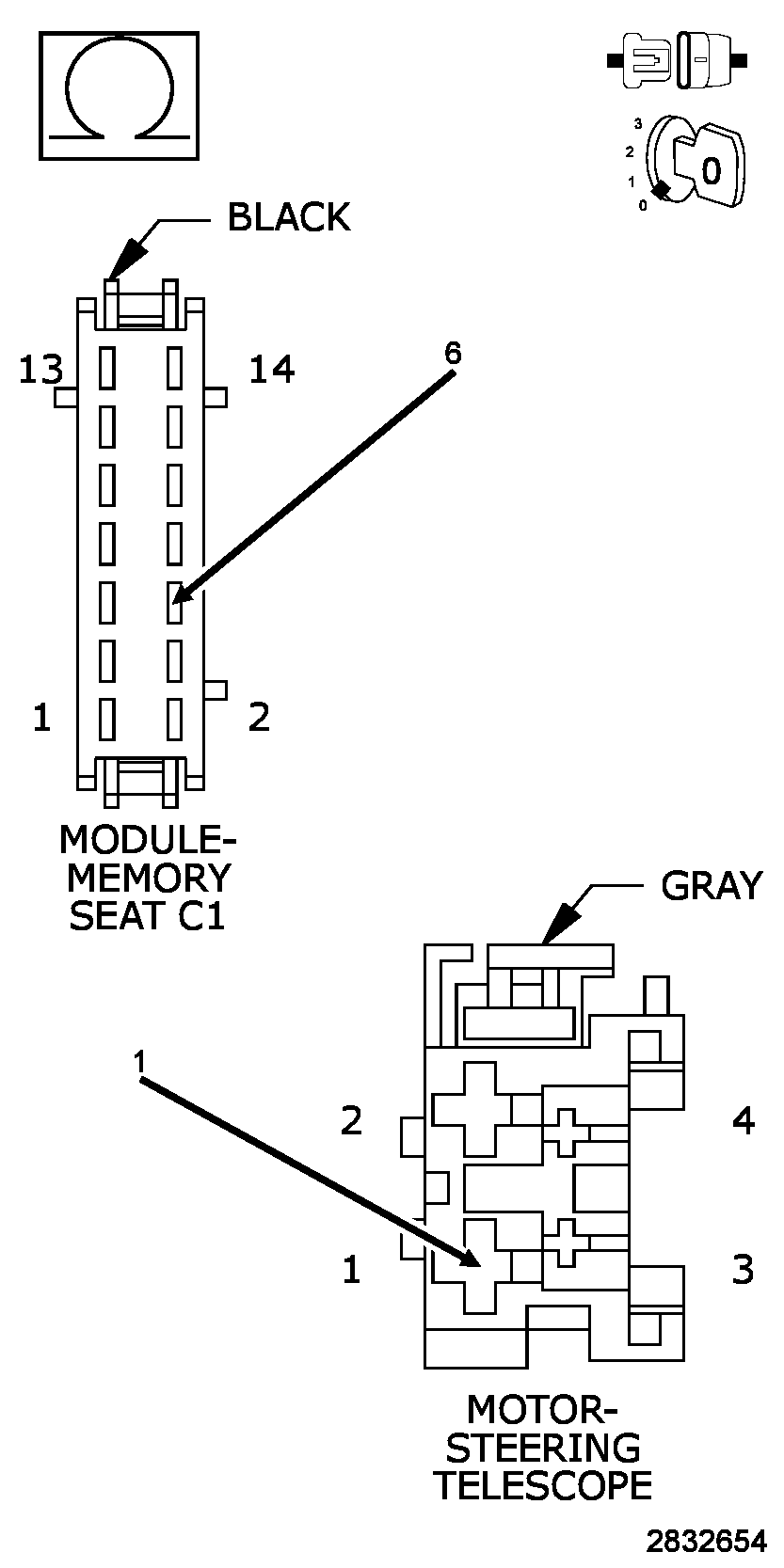

    Fig 16: Checking Steering Motor Common Circuit For An Open Or Excessive Resistance
    GC0151284Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance of the (P953) Steering Motor Common circuit between the Steering Column Telescope Motor harness connector and the MSMD harness connector.

      Is the resistance above 10 Ohms.

      Yes

      • Repair the open or excessive resistance in the (P953) Steering Motor Common circuit.
      • Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

      No

      • Go To  19.
  19. MEMORY SEAT MODULE (MSMD)
    1. Using the wiring diagram/schematic as a guide, inspect the wiring and harness connectors between the Steering Wheel Telescope Motor and the MSMD.
    2. Look for any chafed, pierced, pinched, or partially broken wires.
    3. Look for broken, bent, pushed out or corroded terminals. Verify that there is good pin to terminal contact in the Steering Wheel Telescope Motor and MSMD harness connectors.
    4. Perform any Technical Service Bulletins that may apply.

      Were there any problems found?

      Yes

      No
