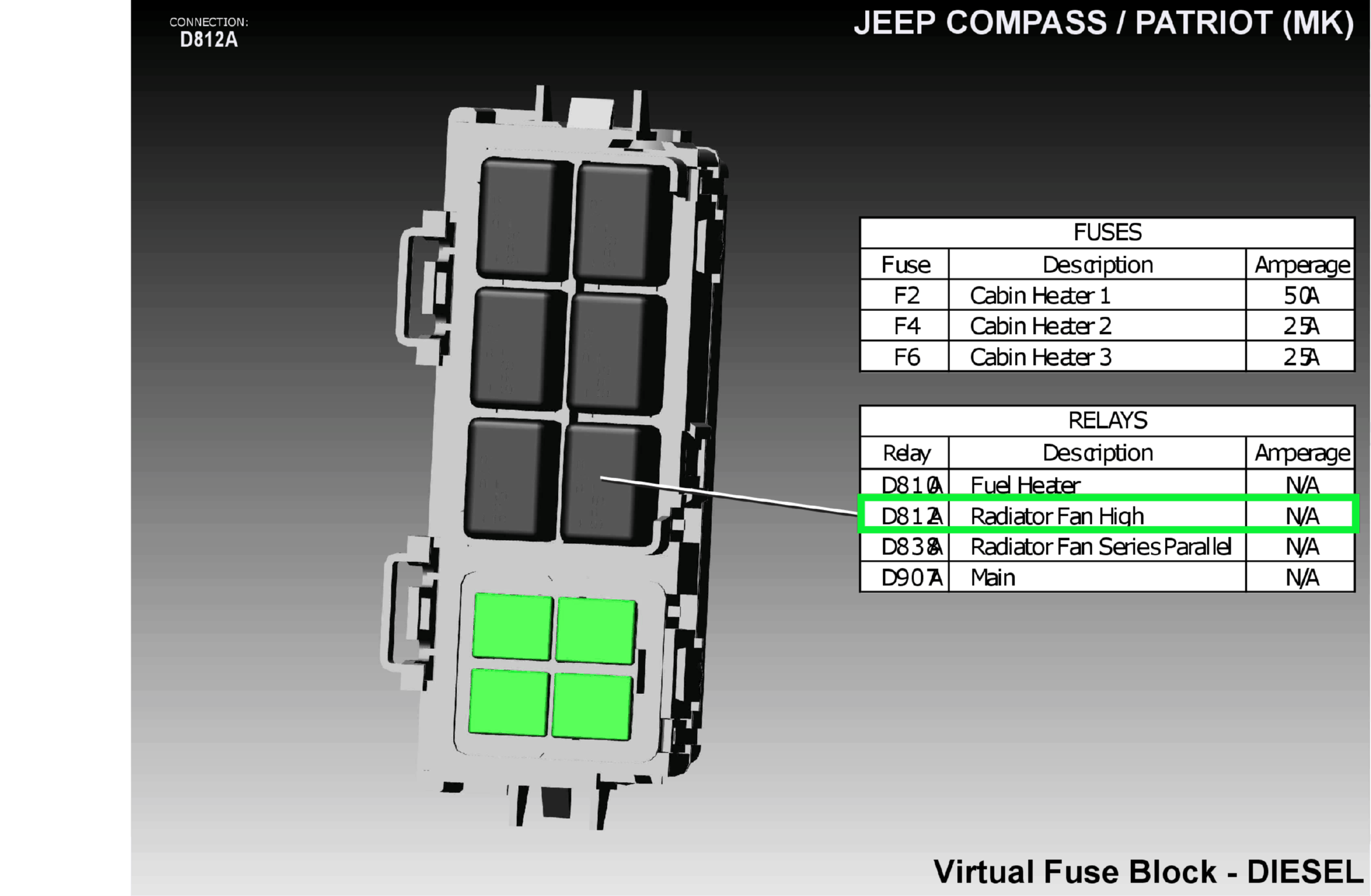

Relay-Radiator Fan-Medium/High (D812A)
Harness-Family: Virtual_Fuse_Block
Color: NA
Gender: MALE
Part Number: G8HE-1C77-R1-DC12
Part Description: Not Available
Connector No: D812A
Option: Standard
Repair Kit Part Number: Not Available
Cavity Count: null
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 30 | A16 | RD/BR | 12 | FUSED B(+) | N/A | ||
| 85 | A935 | RD | 20 | FUSED B(+) | N/A | ||
| 86 | N112 | DB/OR | 20 | RAD FAN RELAY CONTROL | N/A | ||
| 87 | N24 | DG/DB | 12 | HIGH SPEED RAD FAN CONTROL | N/A | ||
|
|||||||
