Section 717 (Audio/Video/Entertainment/Connectivity (Service Information)): Speaker: Description: Base
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

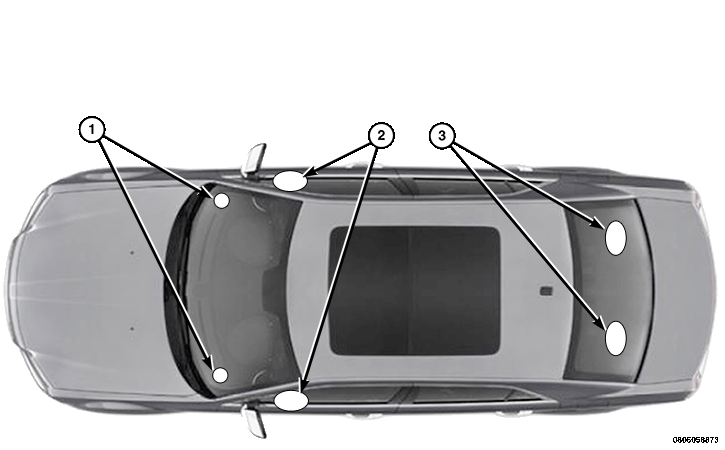

The base speaker system (Sales Code RCG) includes six speakers in six locations.
- Two 8.89 centimeter (3.5 inch) diameter midrange tweeters (1) located on the top of the instrument panel, one at each outboard end.
- Two 15.2 X 23 centimeter (6 X 9 inch) diameter speakers (2) located on the front inner door panels, one at the lower front corner of each front door.
- Two 16.5 centimeter (6.5 inch) diameter speakers (3) located on the package shelf, one at each outboard end.
The speakers cannot be adjusted or repaired. If ineffective or damaged they must be replaced.
