Insulator, Engine Mount, Right: Removal

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.
    GC0144028Courtesy of CHRYSLER GROUP, LLC
  2. Remove the engine cover (1).
    GC0144029Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the Inlet Air Temperature (IAT) sensor wire harness (1).
  4. Loosen the clamp (2) at the throttle body.
  5. Loosen the clamp (3) at the air cleaner housing.
  6. Lift the air inlet hose assembly retaining grommet off the ball stud (4).
  7. Remove the air inlet hose assembly (5).
    GC0144614Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Left engine mount shown in illustration, right engine mount similar.

  8. Remove the right engine mount isolator heat shield retaining nuts (3) and remove the heat shield (4).
  9. Remove both left and right engine mount isolator to frame retaining bolts (2).

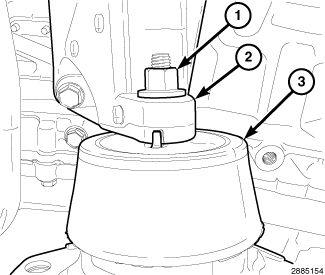

    GC0144470Courtesy of CHRYSLER GROUP, LLC
  10. Remove the right engine mount isolator (3) upper retaining nut (1).
    GC0095584Courtesy of CHRYSLER GROUP, LLC
  11. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  12. Remove retainers (1) and the belly pan.
  13. Using a suitable screw jack, raise the engine to gain clearance for engine mount isolator removal.

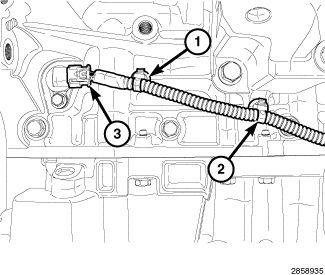

    GC0144418Courtesy of CHRYSLER GROUP, LLC
  14. If required, disconnect the Crankshaft Position (CKP) sensor wire harness connector (3).
  15. If required, unfasten the main wire harness retainer (1) from the engine block and one main wire harness retainer (2) from the right engine mount bracket and position harness aside.

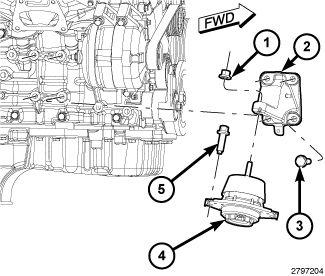

    GC0144304Courtesy of CHRYSLER GROUP, LLC
  16. Remove the engine mount isolator (4) from the vehicle.
  17. If required, remove the right engine mount bracket (2) four retaining bolts (3) and remove the right engine mount bracket.
