Air Cleaner: Installation: Installation

WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

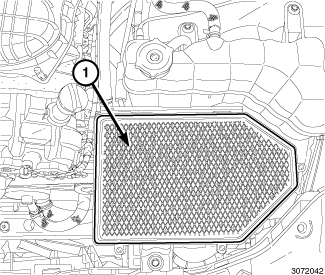

Fig 1: Air Cleaner Element
GC0144650Courtesy of CHRYSLER GROUP, LLC
  1. Install a new air cleaner element (1) into the air cleaner housing.
  2. Position the air cleaner housing cover so that the alignment tabs insert into the lower housing.

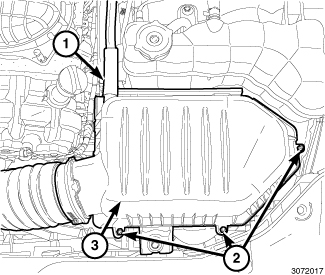

    Fig 2: Fresh Air Makeup Hose, Air Cleaner Housing & Retaining Bolts
    GC0144649Courtesy of CHRYSLER GROUP, LLC
  3. Seat the cover (3) onto the housing and install the retaining bolts (2) and tighten to 4 N.m (35 in. lbs.).
  4. Connect the fresh air makeup hose (1) onto the air cleaner housing.
