Pinion Housing Disassembly

WARNING: This page is about a different car, the 2012 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

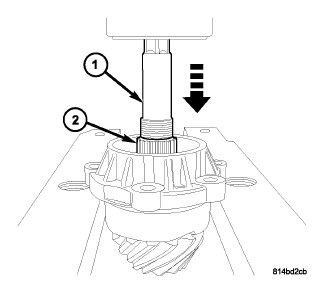

Fig 1: Pressing Pinion Gear Out Of Housing

Courtesy of CHRYSLER GROUP, LLC

Press pinion gear/shaft (2) out of housing. Use suitable adapter (1) to protect end of shaft.

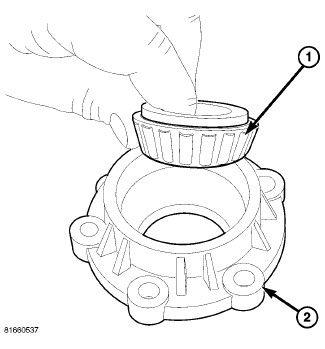

Fig 2: Pinion Bearing
Courtesy of CHRYSLER GROUP, LLC
Remove pinion bearing (1). Refer to Fig 2.

Fig 3: Pinion Bearing Spacer
Courtesy of CHRYSLER GROUP, LLC
Remove pinion bearing spacer (1). Refer to Fig 3.

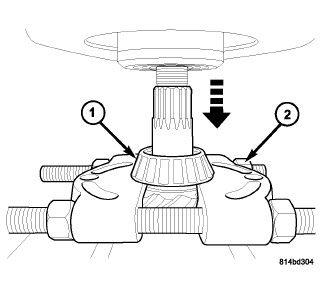

Fig 4: Pressing Off Pinion Head Bearing
Courtesy of CHRYSLER GROUP, LLC

Using splitter (special tool #1130, Splitter, Bearing/Gear) or equivalent (2), press off pinion head bearing (1). Refer to Fig 4.

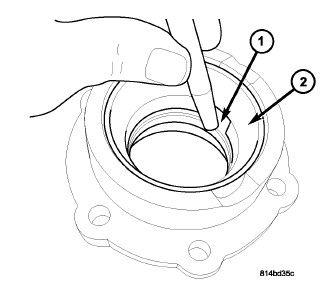

Fig 5: Removing Pinion Tail Bearing Cup
Courtesy of CHRYSLER GROUP, LLC
Using a suitable punch, remove pinion tail bearing cup (1). Refer to Fig 5.

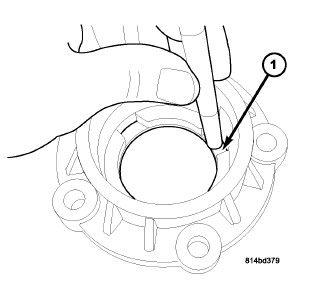

Fig 6: Removing Pinion Head Bearing Cup
Courtesy of CHRYSLER GROUP, LLC
Using suitable punch, remove pinion head bearing cup (1). Refer to Fig 6.
