Cable, Shift Interlock: Installation: Installation

Install the cable between the shifter and the steering column.
Clip the shift interlock cable to the shifter.
Install the shifter in place.

Fig 1: Shifter Hold Down Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the shifter bolts and tighten to 70 N.m (52 ft. lbs.).

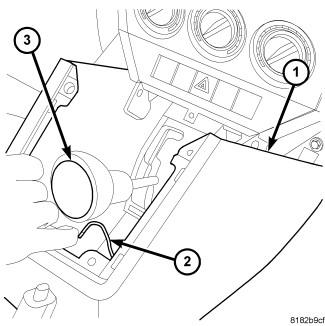

Fig 2: Counsel
Courtesy of CHRYSLER GROUP, LLC
Install the console (1).
Connect the electrical connector (2) (if equipped).

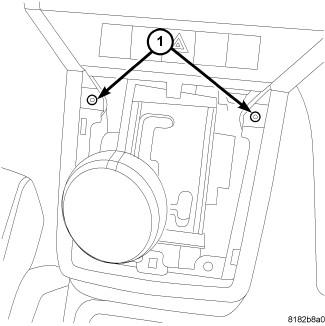

Fig 3: Counsel Screws
Courtesy of CHRYSLER GROUP, LLC
Install the screws (1) at the console.

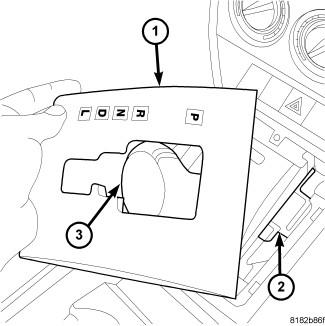

Fig 4: Shifter Bezel
Courtesy of CHRYSLER GROUP, LLC
Install the shifter bezel (1).

Fig 5: Shift Interlock Cable AT Column
Courtesy of CHRYSLER GROUP, LLC
With the ignition switch in the ON position, push the interlock cable (2) into the column (1) until it clicks into place.
Check operation of the ignition-shift interlock feature.
Install the lower shroud.
