Manifold, Intake: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

NOTE:

The intake manifold seals (1, 3) may be used again, provided no cuts, tears, or deformation have occurred.

Inspect the intake manifold seals and replace if necessary.
NOTE:
If reinstalling the original manifold, apply Mopar® Lock & Seal Adhesive to the intake manifold bolts. Not required when installing a new manifold.
If required, apply Mopar® Lock & Seal Adhesive to the intake manifold bolts.
Position the intake manifold (2).

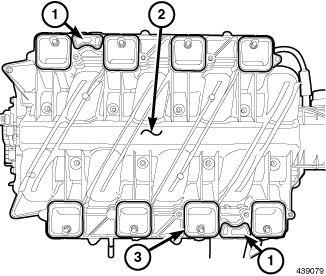

Fig 1: Intake Manifold Tightening Sequence
Courtesy of CHRYSLER GROUP, LLC
Using the sequence shown in illustration, tighten the bolts to 12 N.m (9 ft. lbs.).
Connect the fuel supply line. Refer to FITTING, QUICK CONNECT, STANDARD PROCEDURE .
Connect the brake booster hose and the EVAP purge line.
Connect the following components wire harness connectors:
- Manifold Absolute Pressure (MAP) Sensor
- Fuel Injectors
- Electronic Throttle Control (ETC).
Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION, INSTALLATION .
Connect the negative battery cable.
Start the engine and check for leaks.
