Engine Block: Crankshaft: Installation

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
GC0092132Courtesy of CHRYSLER GROUP, LLC
  1. Select the proper main bearings. Refer to ENGINE/ENGINE BLOCK/BEARING(S), CRANKSHAFT - STANDARD PROCEDURE .
  2. Install main bearings in block and caps, and lubricate bearings.
  3. Position the crankshaft into the cylinder block.
  4. Install the thrust washers (1).
    GC0092128Courtesy of CHRYSLER GROUP, LLC
    CAUTION:

    The overuse of oils on the threads may cause a Hydro-Lock condition at which may cause inaccurate readings. Incorrect torque values may occur.

    NOTE:

    The main cap crossbolts are torqued after final torque of the main cap bolts. Always use NEW  crossbolts.

  5. Clean and apply a light oil film to all cap bolts. Install all main bearing caps (1). Install all M12 cap bolts and alternately tighten in two steps using the following sequence.

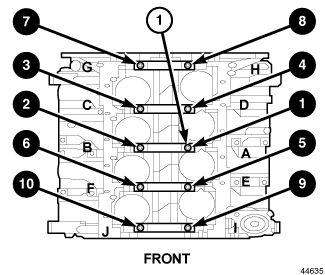

    Fig 1: Main Bearing Caps Tightening Sequence
    GC0095576Courtesy of CHRYSLER GROUP, LLC
  6. Step 1 - 28 N.m (20 ft. lbs.).
  7. Step 2 - Turn main cap bolts (1) an additional 90°.
  8. Install the NEW  M8 crossbolts with attached washer/gasket. Starting with crossbolt A, tighten each crossbolt to 31 N.m (23 ft. lbs.).
  9. Repeat crossbolt tightening procedure.
  10. Using a suitable dial indicator, measure the crankshaft end play. Refer to ENGINE - SPECIFICATIONS .
  11. Position the connecting rods onto the crankshaft and install the rod bearing caps. Refer to INSTALLATION  .

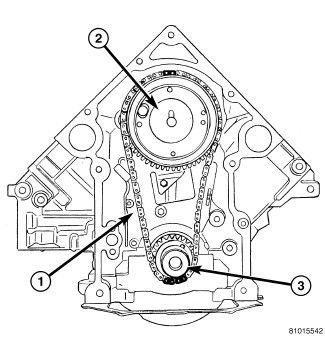

    GC0095575Courtesy of CHRYSLER GROUP, LLC
  12. Install timing drive (2). Refer to INSTALLATION  .

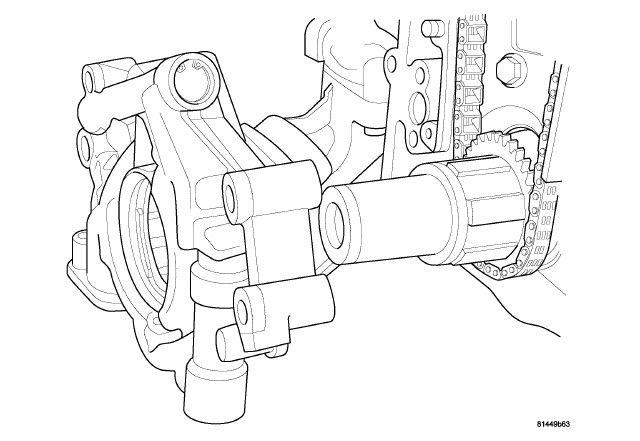

    GC0095573Courtesy of CHRYSLER GROUP, LLC
  13. Install oil pump. Refer to INSTALLATION  .
  14. Install the timing chain case cover. Refer to INSTALLATION  .
  15. Install the rear main seal and retainer. Refer to INSTALLATION  .
  16. Install the windage tray/oil pan gasket.
  17. Install the oil pick up tube.
  18. Install the oil pan. Refer to INSTALLATION PAN, OIL, INSTALLATION .
  19. Install the vibration damper. Refer to INSTALLATION  .
  20. Install the engine. Refer to INSTALLATION  .
  21. Connect the negative battery cable.
NOTE:

The Cam/Crank Variation Relearn procedure must be performed using the scan tool anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components.
