Shield, Rear Mount: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

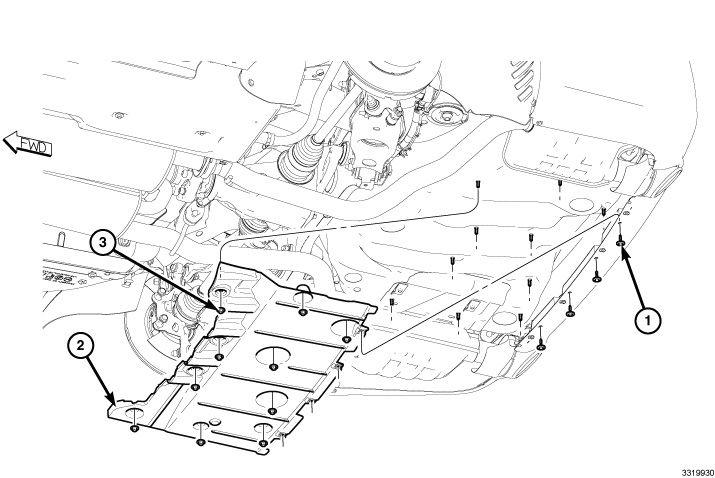

- Position the rear underbody shield/panel (2) to the vehicle.
- Install the ten retaining nuts (3) that secure the underbody shield (2) to the vehicle underbody. Tighten the nuts securely.
- Install the four retaining screws (1) that secure the underbody shield (2) to the vehicle underbody. Tighten the nuts securely.
- Lower the vehicle.
