Section 526 (Starting System (Service Information)): Starter: Removal: 6.2L

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable
  2. Raise and support the vehicle Refer to: HOISTING
  3. Remove the two heat shield nuts (1) and remove the heat shield.
    G00582352Courtesy of CHRYSLER GROUP, LLC
  4. Remove the RH catalytic converter. Refer to: CONVERTER, CATALYTIC, 6.2L/6.4L
  5. Remove the starter mounting bolts (1).
    G00582353Courtesy of CHRYSLER GROUP, LLC
  6. Move the starter motor towards the front of vehicle far enough for the nose of starter to clear. Always support the starter motor during this process. Do not let the starter motor hang from the wire harness.
  7. Remove the battery cable-to-solenoid nut (1).
  8. Remove the solenoid wire (1) from the solenoid stud.

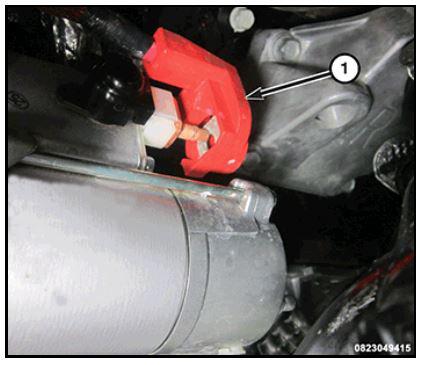

    G00582354Courtesy of CHRYSLER GROUP, LLC
  9. Remove the starter motor.
