No Response From EPS (Electric Power Steering Module): Notes
WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

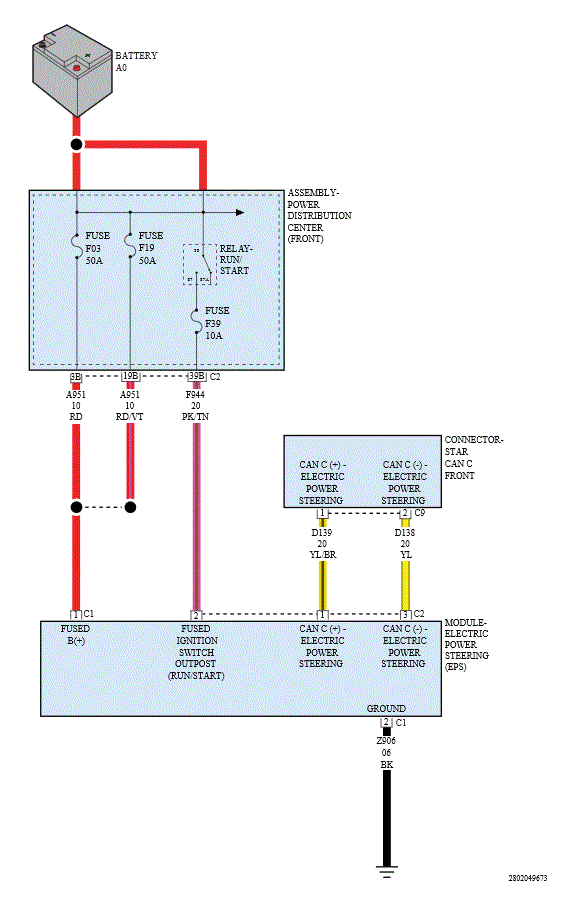

For a complete wiring diagram, refer to SYSTEM WIRING DIAGRAMS article .
