Shield, Heat: Installation: Installation

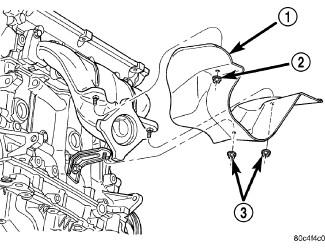

Fig 1: Heat Shield-Engine

Courtesy of CHRYSLER GROUP, LLC

1 - HEAT SHIELD

2 - NUT

3 - NUT

1. Position heat shield(s) to underbody.
2. Install heat shield fasteners.
3. Inspect heat shield to exhaust system clearances and adjust as necessary.
4. Lower vehicle.
5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
6. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
