Module, Blind Spot: Removal: Removal

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.

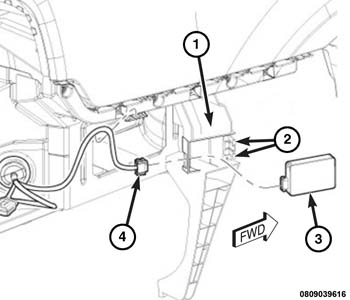

Fig 1: Blind Spot Sensor, Bracket, Connector & Tabs
GC0158214Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative cable from the battery. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector before disconnecting the negative cable from the battery.
  2. Remove the rear bumper fascia from the vehicle. Refer to FASCIA, REAR, REMOVAL .
  3. Disconnect the rear body wire harness connector (4) from the Left Blind Spot Sensor (LBSS) or Right Blind Spot Sensor (RBSS) (3) connector receptacle.
  4. Disengage the latch tabs (2) of the rear bumper fascia mounting bracket (1) and pull the LBSS or RBSS out of the bracket.
