B1A72-13-Passive Entry Antenna 2 - Circuit Open: Notes

WARNING: This page is about a different car, the 2015 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

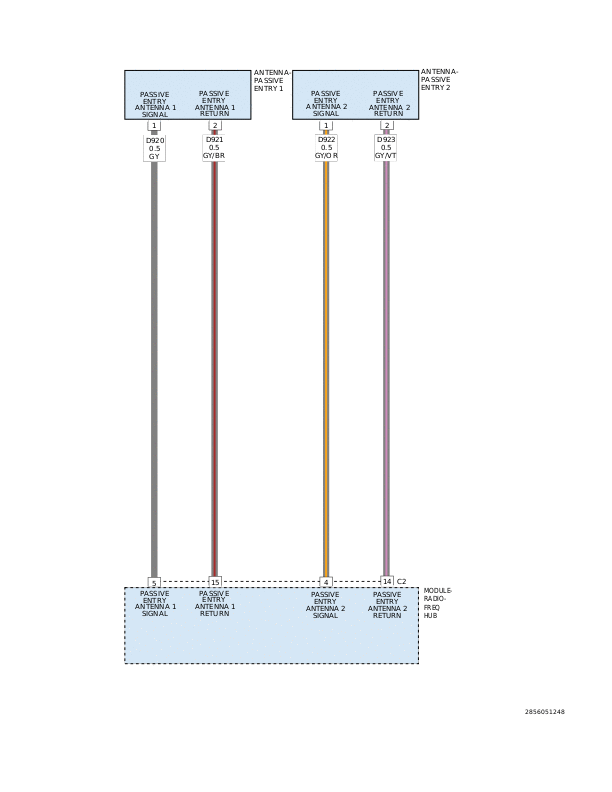

Fig 1: Passive Entry Antenna 1 & 2 - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
