Drive POWERFLOW

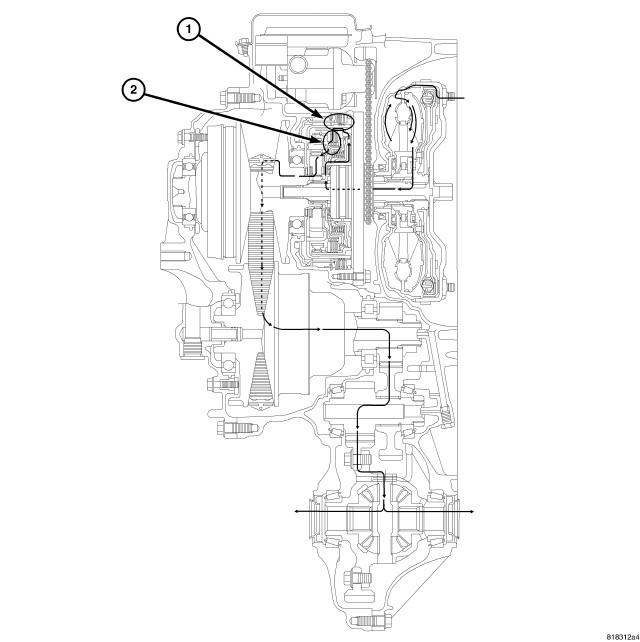

Fig 1: Drive Powerflow

Courtesy of CHRYSLER GROUP, LLC

1 - REVERSE BRAKE (RELEASED)

2 - FORWARD CLUTCH (ENGAGED)

When the forward clutch is engaged, the driving force from the engine rotates the sun gear normally through the forward clutch.

Therefore, the primary pulley is rotated normally and the driving force is outputted in the normally rotated direction.
