Positive - Engine Compartment

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

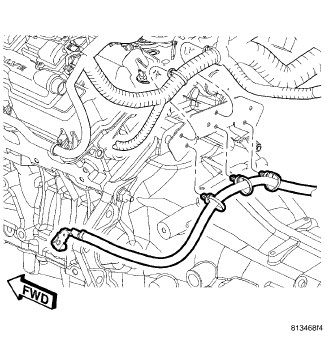

Fig 1: Routing Clips

Courtesy of CHRYSLER GROUP, LLC

Position the battery positive cable in the engine compartment.
On the 3.6L and 5.7L secure the battery positive cable to the routing clips located at the back of the engine.

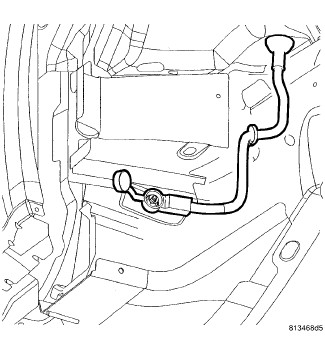

Fig 2: Battery Positive Cable
Courtesy of CHRYSLER GROUP, LLC
On the 5.7L secure the battery positive cable to the routing clip located at the back of the starter.

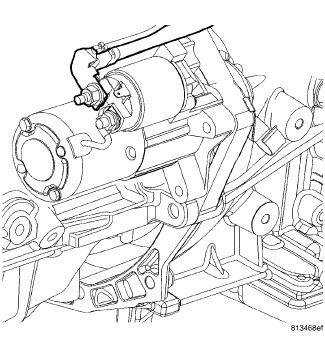

Fig 3: Battery Positive Cable
Courtesy of CHRYSLER GROUP, LLC
Install the battery positive cable to starter fastener.

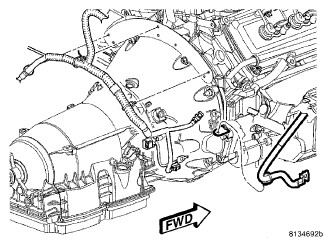

Fig 4: Bulkhead Fastener
Courtesy of CHRYSLER GROUP, LLC
Install the battery positive cable to bulkhead fastener.
Install the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, INSTALLATION .
Lower vehicle.

Fig 5: Battery Negative Cable
Courtesy of CHRYSLER GROUP, LLC
Connect the battery negative cable (1).
Install the spare tire cover.
