Module, Telematics Gateway: Removal: Removal
WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
- Perform a complete backup of user data. Refer to STANDARD PROCEDURE .
- Disconnect the negative battery cable.
- Before proceeding with the following repair procedure, review all warnings and cautions.
- Remove the switch bank. Refer to POD, SWITCH BANK, REMOVAL .

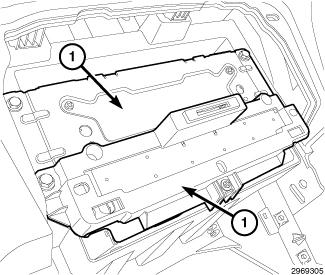

- Remove the Telematics Gateway Module (TGM) (1) retainers.
Courtesy of CHRYSLER GROUP, LLC
CAUTION:Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
- Pull the TGM out far enough to access the harness connectors.

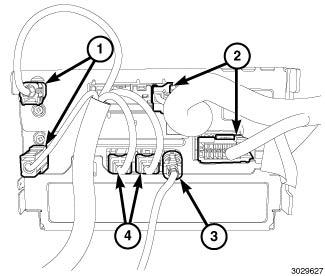

- If equipped, disconnect the antenna(s) (1), RF HUB and UCI cables (4), video cable (3) and wiring connectors (2) from the TGM.
- Remove the TGM from the vehicle.
