Module, Hands Free: Installation: Installation

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

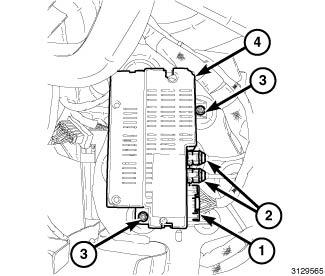

Fig 1: HFM Electrical & USB Connectors
GC0144704Courtesy of CHRYSLER GROUP, LLC
  1. Position the HFM (4) into the vehicle and install the retainers (3).
  2. Connect the HFM electrical (1) and USB connectors (2).

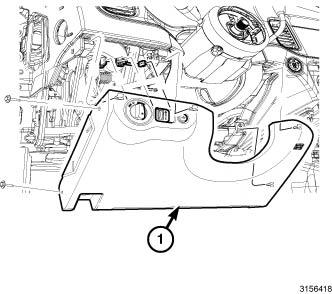

    Fig 2: Steering Column Opening Cover
    GC0144722Courtesy of CHRYSLER GROUP, LLC
  3. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
  4. Connect the negative battery cable.
