Antenna, Remote Start: Installation
WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

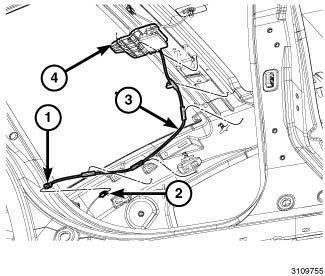

- Mount the remote start antenna (4) to the mounting bracket.
- Install the antenna and mounting bracket into the structural support rib.
- Install the remote start harness (3) to the driver side D-pillar.
- Connect the remote start antenna (1) to the RF Hub module jumper wire (2) located on the D-pillar.
- Install the headliner. Refer to HEADLINER, INSTALLATION .
- Connect the negative battery cable.
