Section 526 (Starting System (Service Information)): Starter: Installation: 6.2L

WARNING: This page is about a different car, the 2016 Dodge Charger and 2015 Dodge Charger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the starter into the transmission but do not install bolts.
  2. Connect the solenoid wire to the starter motor (snaps on).
  3. Position the battery cable to the solenoid stud. Install the battery cable eyelet nut and tighten to the proper specification Refer to: TORQUE SPECIFICATIONS .
  4. Install the mounting bolts (1) and tighten to the proper specification Refer to:

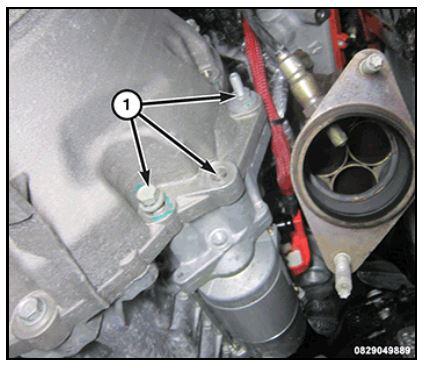

    G00582353Courtesy of CHRYSLER GROUP, LLC
  5. Install the RH catalytic converter. Refer to: CATALYTIC CONVERTER INSTALLATION, 6.2L/6.4L
  6. Position the heat shield and install the two shield mounting nuts (1) and tighten to the proper specification. Refer to: TORQUE SPECIFICATIONS

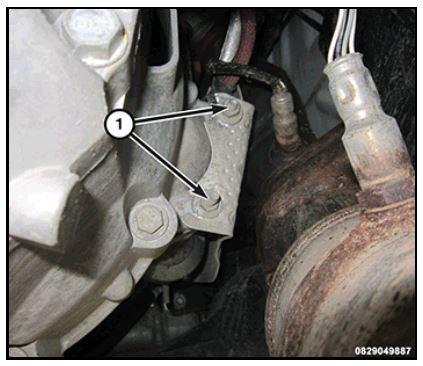

    G00582352Courtesy of CHRYSLER GROUP, LLC
  7. Connect the negative battery cable.
