Section 30 (Vehicle Theft Security System (Service Information)): Siren: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the alarm siren module has been replaced with a new unit, a diagnostic scan tool MUST be used to initialize and configure the new unit in the intrusion module before the Vehicle Theft Security System (VTSS) can operate as designed. Follow the programming steps outlined in the diagnostic scan tool for INITIALIZE SIREN under MISCELLANEOUS FUNCTIONS for the INTRUSION TRANSCEIVER MODULE/ITM menu item as appropriate.

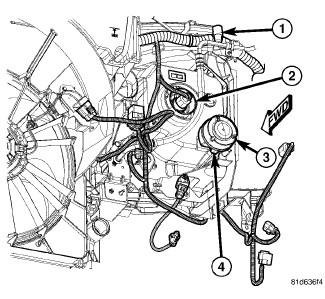

Fig 1: Alarm Siren Module, Module Carrier, Lamp Unit Housing

Courtesy of CHRYSLER LLC

Position the alarm siren module (3) to the engine compartment side of the mounting tab of the front end module carrier (1) located behind the right front combination lamp unit (2).
From the front of the vehicle, install and tighten the screw that secures the siren to the carrier. Tighten the screw to 14 N.m (10 ft. lbs.).
Reinstall the right front combination lamp unit onto the front of the vehicle. Refer to Electrical - Lamps and Lighting/Lamps/Lighting - Exterior/UNIT, Front Lamp - Installation .
Reconnect the front end module wire harness connector to the connector receptacle (4) of the siren.
Reconnect the battery negative cable.
