Section 111 (Starting System (Service Information)): Starter: Installation: 6.4L

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

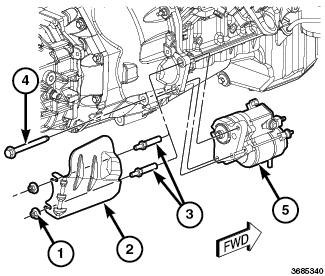

Fig 1: Two Heat Shield Nuts, Heat Shield, Two Starter Stud Mounting Bolts, Lower Starter Mounting Bolt & Starter Motor
GC0152301Courtesy of CHRYSLER GROUP, LLC
NOTE:

Do not allow the starter motor to hang from wire harness.

  1. Position the starter (5) into transmission but do not install bolts.
  2. Connect the solenoid harness connector to starter motor (snaps on).
  3. Position the battery cable to solenoid stud and install the battery cable eyelet nut.

    Tighten to 11 N.m (8 ft. lbs.).

  4. Install the lower starter mounting retainer (4).
  5. Install the two starter stub mounting bolts (3).
  6. Tighten all three starter mounting retainers (3) and (4) to 25 N.m (19 ft. lbs.)
  7. Install the heat shield (2).
  8. Install the shield nuts (1).

    Tighten to 18 N.m (13 ft. lbs.)

  9. Lower the vehicle.
  10. Connect negative battery cable.
