Section 111 (Starting System (Service Information)): Starter: Installation: 3.0L

WARNING: This page is about a different car, the 2012 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

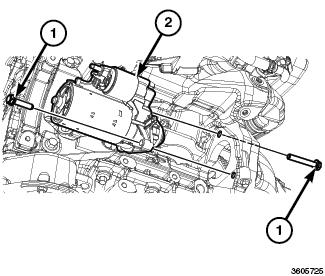

Fig 1: Bolts & Starter

Courtesy of CHRYSLER GROUP, LLC

Install the stater (2). Tighten bolts (1) to 68 N.m (50 ft. lbs.)

Fig 2: Nut, B+ Cable, Stud, Wire Harness Connector & Terminal
Courtesy of CHRYSLER GROUP, LLC
Connect the solenoid wire harness connector (4) to the solenoid terminal (5).
Install the B+ cable (2) to the solenoid stud (3). Tighten nut (1) to 11 N.m (97 in. lbs.).

Fig 3: Rear & Front Belly Pan
Courtesy of CHRYSLER GROUP, LLC
Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .
Install the belly pan. Refer to BELLY PAN, INSTALLATION .

Fig 4: Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
Connect the negative battery cable.
