Sensor, Oxygen: Installation: Installation

The threads of new oxygen sensors are factory coated with anti-seize compound to aid in removal.Do Not add any additional anti-seize compound to the threads of a new oxygen sensor.

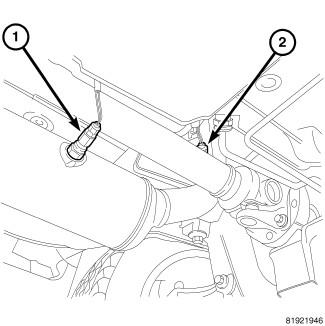

Fig 1: O2 Sensors Left Side

Courtesy of CHRYSLER GROUP, LLC

1. Install the O2 sensor (1) or (2) and tighten to 41 N.m (30 ft. lbs.).
2. Connect the O2 sensor electrical connector.
3. Lower the vehicle.
