Sensor, Speed, Input: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

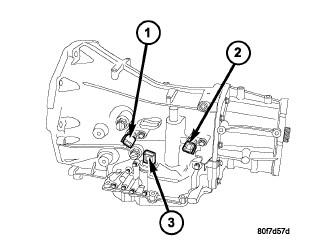

Fig 1: Locating Input Speed, Output Speed & Transmission Range Sensors

Courtesy of CHRYSLER GROUP, LLC

1 - INPUT SPEED SENSOR

2 - OUTPUT SPEED SENSOR

3 - TRANSMISSION RANGE SENSOR

Install the input speed sensor (1) into the transmission case. Refer to Fig 1.
NOTE:
Before installing the speed sensor bolt, it will be necessary to replenish the sealing patch on the bolt using Mopar® Lock AND Seal Adhesive.
Install the bolt to hold the input speed sensor into the transmission case. Tighten the bolt to 9 N.m (80 in.lbs.).
Install the wiring connector onto the input speed sensor
Verify the transmission fluid level. Add fluid as necessary.
Lower vehicle.
