Dimension Illustrations

WARNING: This page is about a different car, the 2011 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.
DESCRIPTION  FIGURE
BOTTOM VIEW Refer toFig 1.
SIDE VIEW Refer toFig 2.

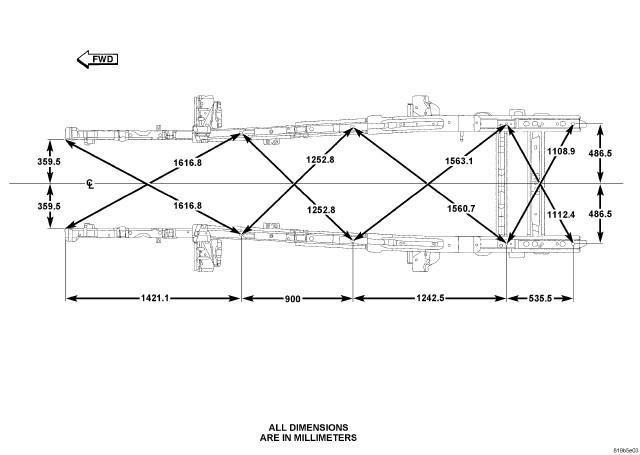

Fig 1: Frame Dimensions Bottom View
GC0128030Courtesy of CHRYSLER LLC

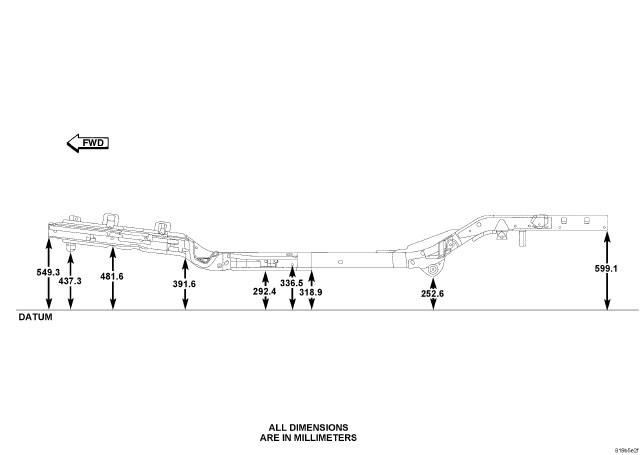

Fig 2: Frame Dimensions Side View
GC0128031Courtesy of CHRYSLER LLC
