P0622-Generator Field Control Circuit: Notes

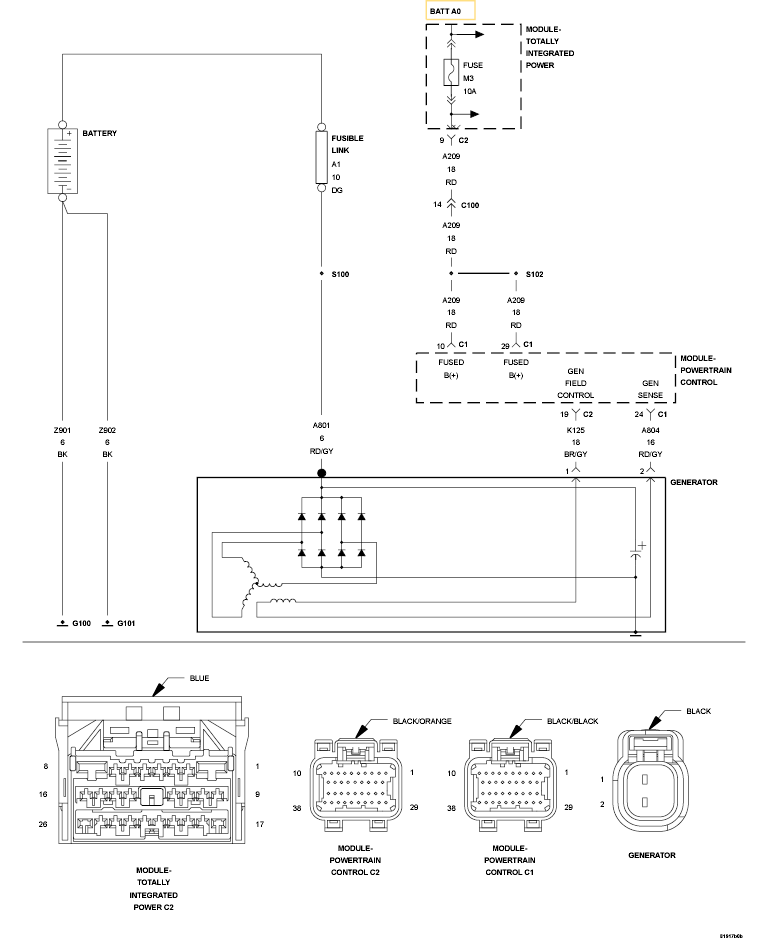

Fig 1: Charging System Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
