Sensor, Camshaft Position, 3.8L: Installation: Installation

Fig 1: Camshaft Position Sensor Components

Courtesy of CHRYSLER GROUP, LLC

NOTE:

If reinstalling the sensor (1), check the sensor O-ring (2) for damage and replace if necessary. Lubricate the O-ring with clean engine oil before installing the sensor. Clean off the old spacer (3) on the sensor face. A NEW SPACER (3) must be attached to the face before installation.

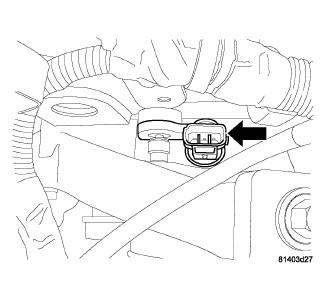

Fig 2: Camshaft Position Sensor Location

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

A NEW SPACER must be attached to the face of the sensor before installation. The spacer sets the correct clearance between the sensor and the camshaft gear. An improperly positioned sensor can result in sensor damage, a faulty signal or no signal at all.

Install the camshaft position (CMP) sensor in the chain case cover and rotate into position.

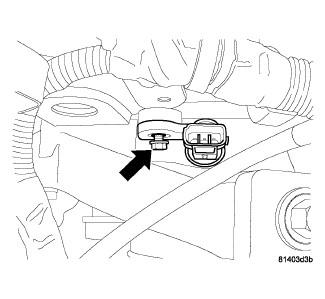

Fig 3: Camshaft Position Sensor Retaining Bolt
Courtesy of CHRYSLER GROUP, LLC
Push the sensor down until contact is made with the camshaft gear. While holding the sensor in this position, install and tighten the retaining bolt to 14 N.m (125 in. lbs.).
Connect and lock the electrical connector to the CMP sensor.
Connect the negative battery cable and tighten nut to 5 N.m (45 in. lbs.).

NOTE:

The Cam/Crank Variation Relearn procedure must be performed anytime there has been a repair/replacement made to a powertrain system, for example: flywheel, valvetrain, camshaft and/or crankshaft sensors or components. Refer to appropriate Electrical Diagnostic article. .
