P2784-Input Speed Sensor 1/2 Correlation: Notes

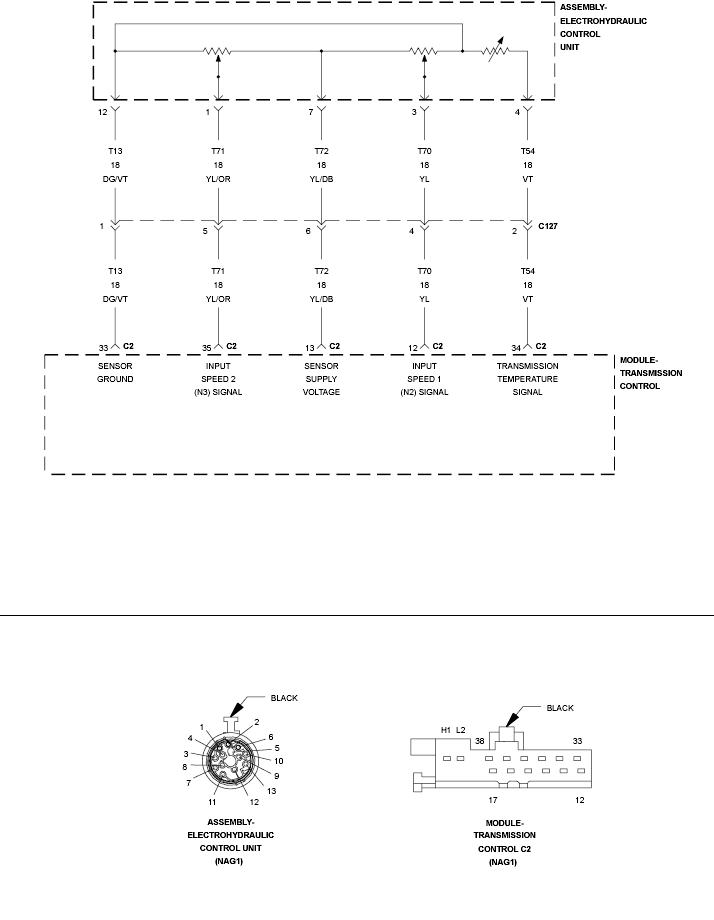

Fig 1: Transmission Sensors Wiring Diagram

GC0102167

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
