P0748-Modulator Pressure Solenoid Circuit: Notes

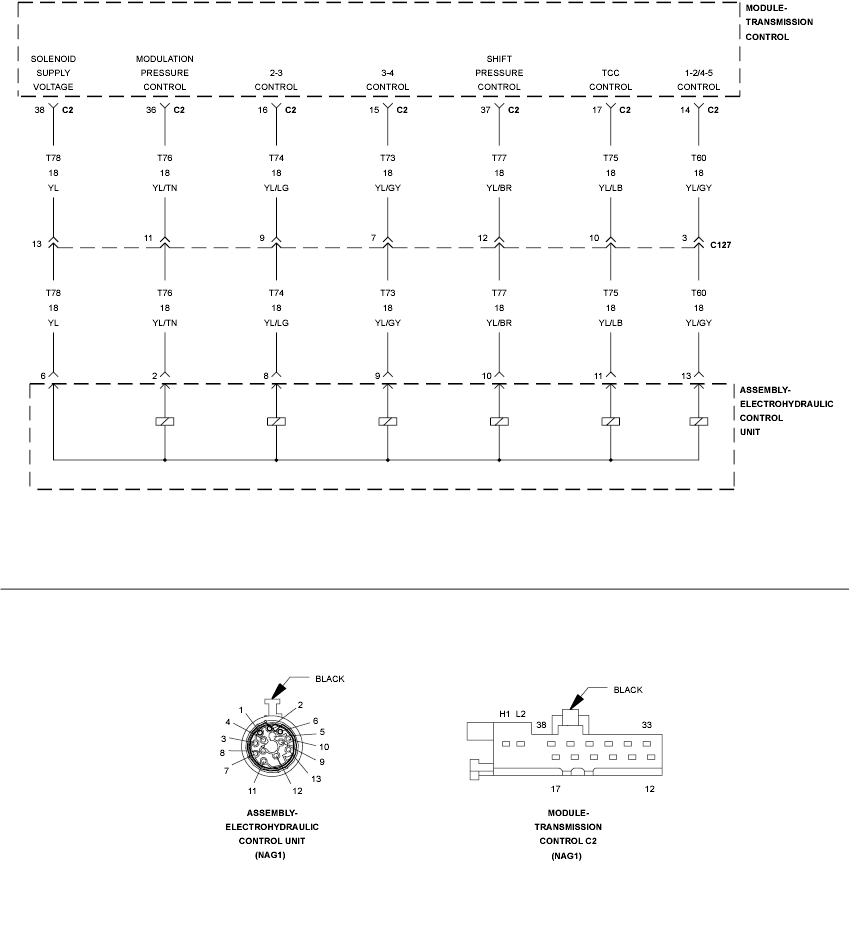

Fig 1: TCM Solenoid Wiring Diagram

GC0102168

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
