Hub And Bearing: Installation: Installation

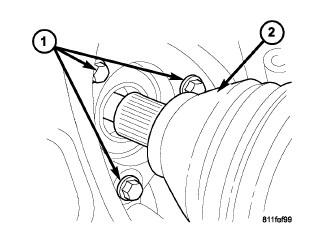

Fig 1: View Of Hub/Bearing Mounting Bolts

Courtesy of CHRYSLER LLC

1. Install the hub/bearing assembly to the vehicle.
2. Install the three mounting bolts (1) for the hub/bearing. Tighten the bolt to 130 N.m (96 ft.lbs.).
3. Install the axle shaft nut. Tighten the nut to 135 N.m (100 ft.lbs.). (if equipped with four wheel drive)
4. Install the wheel speed sensor to the hub. Tighten the bolt to 13.5 N.m (10 ft.lbs.). Refer to SENSOR, Wheel Speed, Front, Installation .
5. Install the disc brake rotor. Refer to ROTOR, Brake, Installation .
6. Install the disc brake caliper adapter. Tighten the nut to 135 N.m (100 ft.lbs.). Refer to ROTOR, Brake, Installation .
7. Install the tire and wheel assembly. Refer to Wheels, Standard Procedure .
