SHAFT, Intermediate: Removal: 3.7L

Disconnect the negative battery cable.
Remove knee blocker cover and knee blocker. Refer to KNEEBLOCKER, Removal .
NOTE:
The steering column on vehicles with an automatic transmission may not be equipped with an internal locking shaft that allows the ignition key cylinder to be locked with the key. Alternative methods of locking the steering wheel for service will have to be used.
Lock the steering wheel with the tires in the straight ahead position.

Fig 1: Identifying Lower Column Pinch Bolt & Steering Coupler
Courtesy of CHRYSLER LLC
Remove the lower column pinch bolt (2).
Lower the steering coupler (1) shaft from the column.

Fig 2: Boot Tangs
Courtesy of CHRYSLER LLC
Remove the intermediate shaft seal by pushing in the four tangs (2) securing it to the panel.

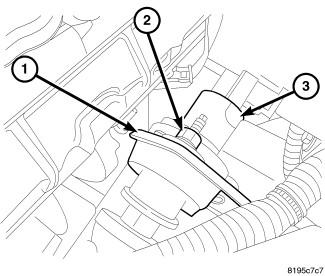

Fig 3: Removing Nuts For Intermediate Shaft Support Bearing
Courtesy of CHRYSLER LLC

Remove the nuts (2) for the intermediate shaft support bearing (1).

Fig 4: Identifying Ratchet, Extension, Center Support Bearing Bracket & Shock Tower
Courtesy of CHRYSLER LLC
Remove the center support bearing bracket (3) from the mount on the shock tower (4) using a ratchet (1) with an extension (2).

Fig 5: Identifying Shock Tower Nuts
Courtesy of CHRYSLER LLC
Remove the nuts from the shock tower if removing the bracket.

Fig 6: Identifying Intermediate Shaft, Coupler & Lower Coupler Pinch Bolt
Courtesy of CHRYSLER LLC
Remove the lower coupler pinch bolt (3) at the steering gear.
Remove the coupler (2) at the steering gear.
Remove the intermediate shaft (1) from the vehicle.
Remove the center support bearing from the steering shaft (if replacing the intermediate shaft).
