B1B88-Passenger Seat Weight Sensor 1 - Right Rear Input Circuit Low: Notes

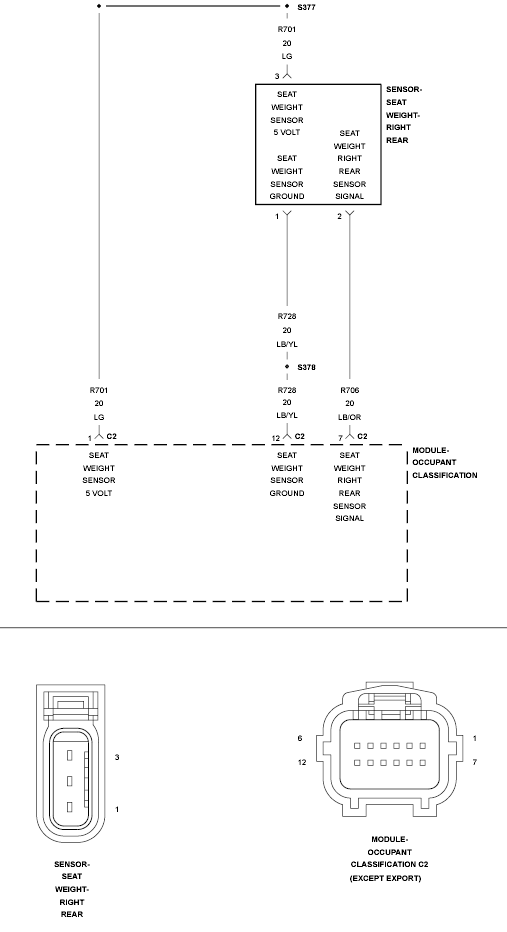

Fig 1: Right Rear Seat Weight Sensor Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
