INJECTOR(S), Fuel: Installation: Installation
Courtesy of CHRYSLER LLC

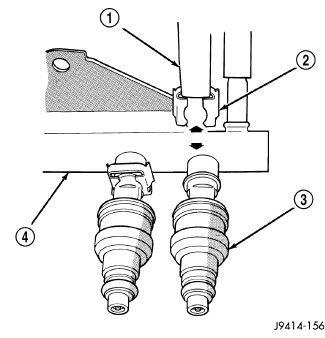

| 1 - PLIERS |
| 2 - INJECTOR CLIP |
| 3 - FUEL INJECTOR |
| 4 - FUEL RAIL - TYPICAL |
- Install fuel injector(s) (3) into fuel rail assembly (4) and install retaining clip(s) (2).
- If same injector(s) is being reinstalled, install new O-ring(s). Two different O-rings are being used. These can be easily identified by color. Install black O-ring at intake manifold end of injector. Install red/rust colored O-ring at fuel rail end of injector.
- Apply a small amount of clean engine oil to each injector O-ring. This will aid in installation.
- Install fuel rail. Refer to RAIL, Fuel, Installation or RAIL, Fuel, Installation .
- Start engine and check for fuel leaks.
